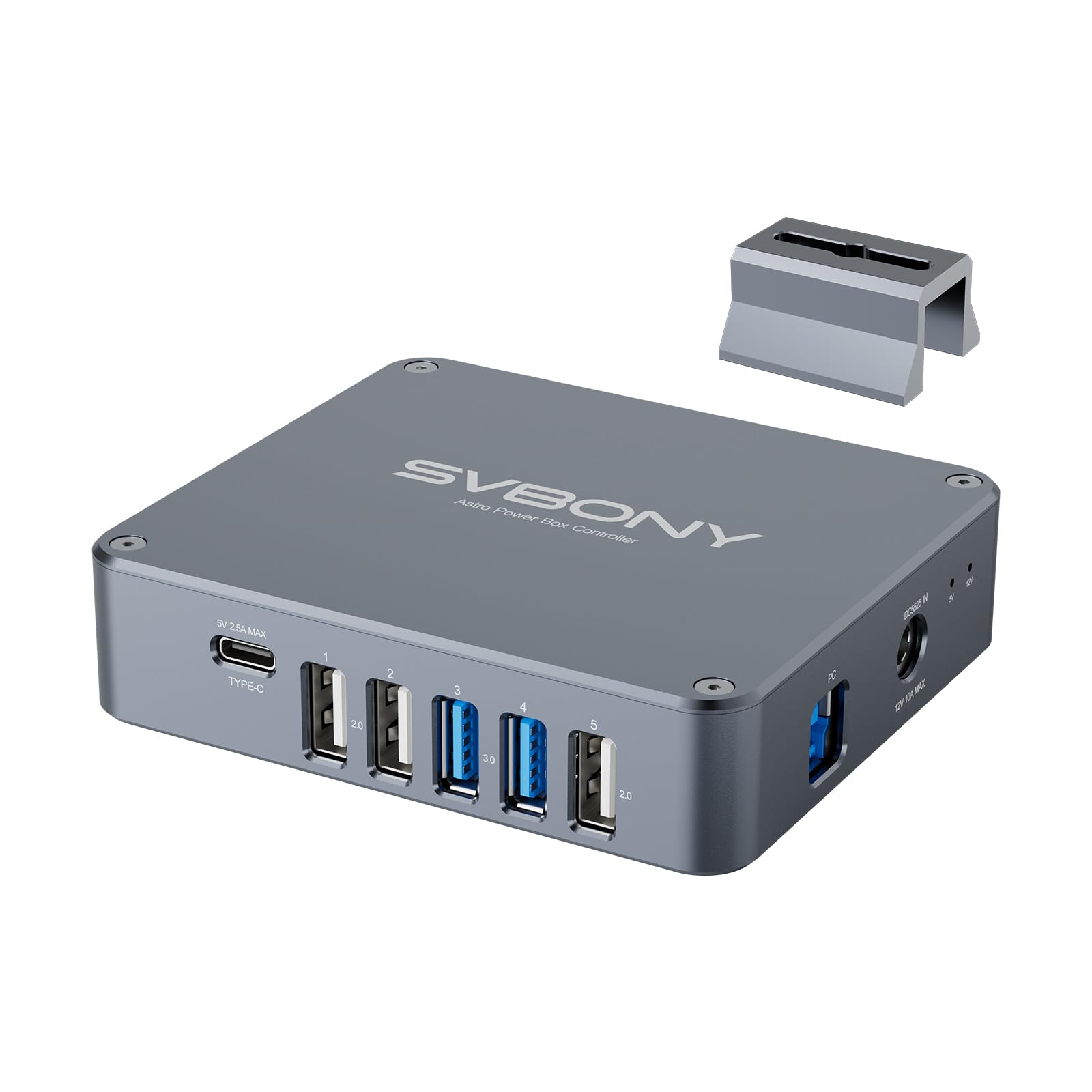

SVBONY SV241 Pro Astronomical Telescope Power Management Box, Telescope Power Hub, Remote Control for Astronomy Equipment, Durable and Portable Power Adapter with Dovetail Base for Astrophotography

Brand: SVBONY

Color: Gray silver

Features:

• SVBONY SV241 Pro Astronomy USB Control Hub's remote plug-and-play function simplifies device operation and boosts efficiency; power hub with dew point intelligent control protects equipment and ensures smooth observations; please note SV241Pro does not support hot-swapping; only plug or unplug the device after the power is completely turned off; this helps avoid voltage fluctuations that could potentially damage the product or your connected equipment; Firmware upgraded to V1.2 (adds Power-off Memory)

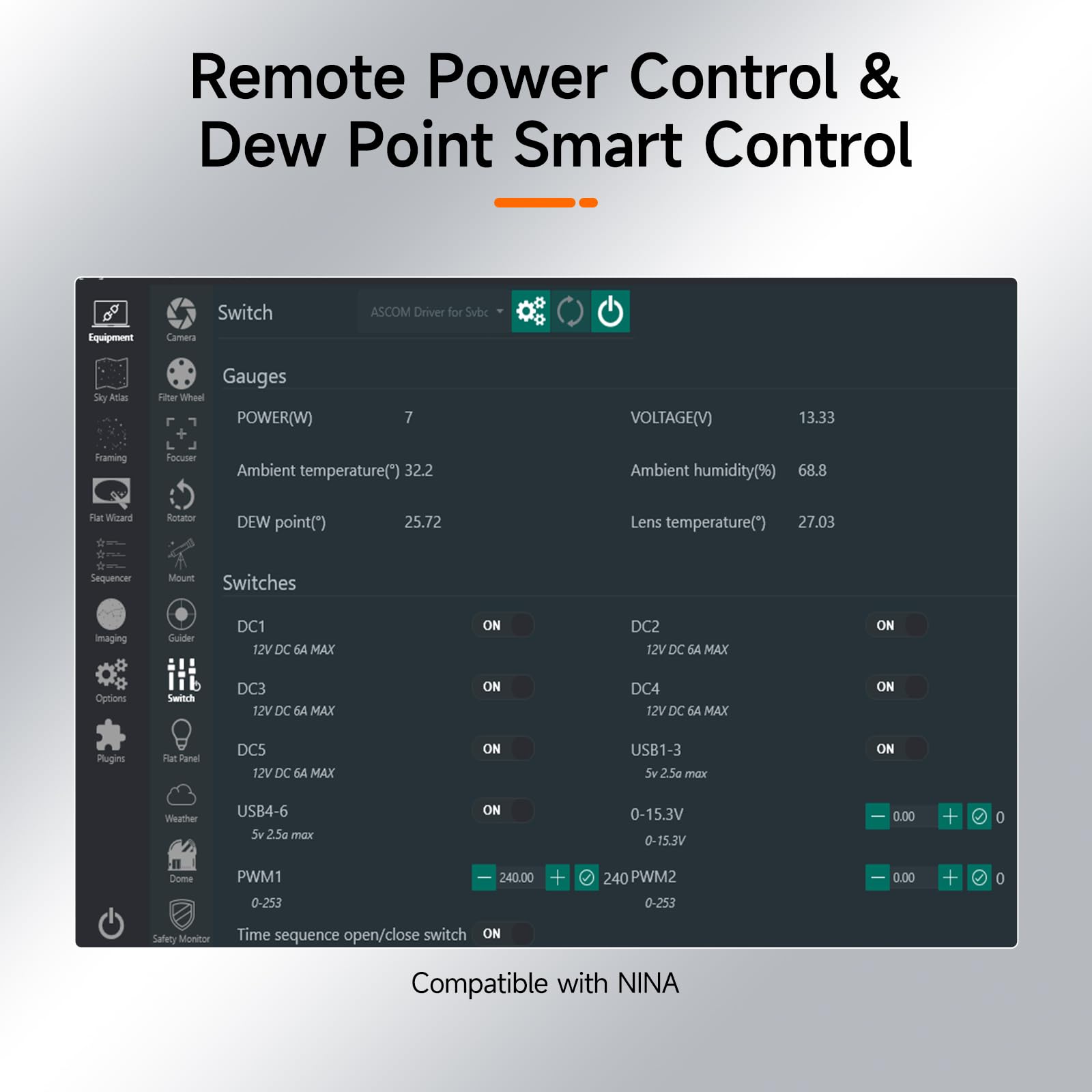

• Compatibility: SV241Pro is fully compatible with NINA; with user-friendly interface and stable performance; it enables seamless integration into mainstream workflows for direct power control and status monitoring; Note: it does not support INDI protocol currently

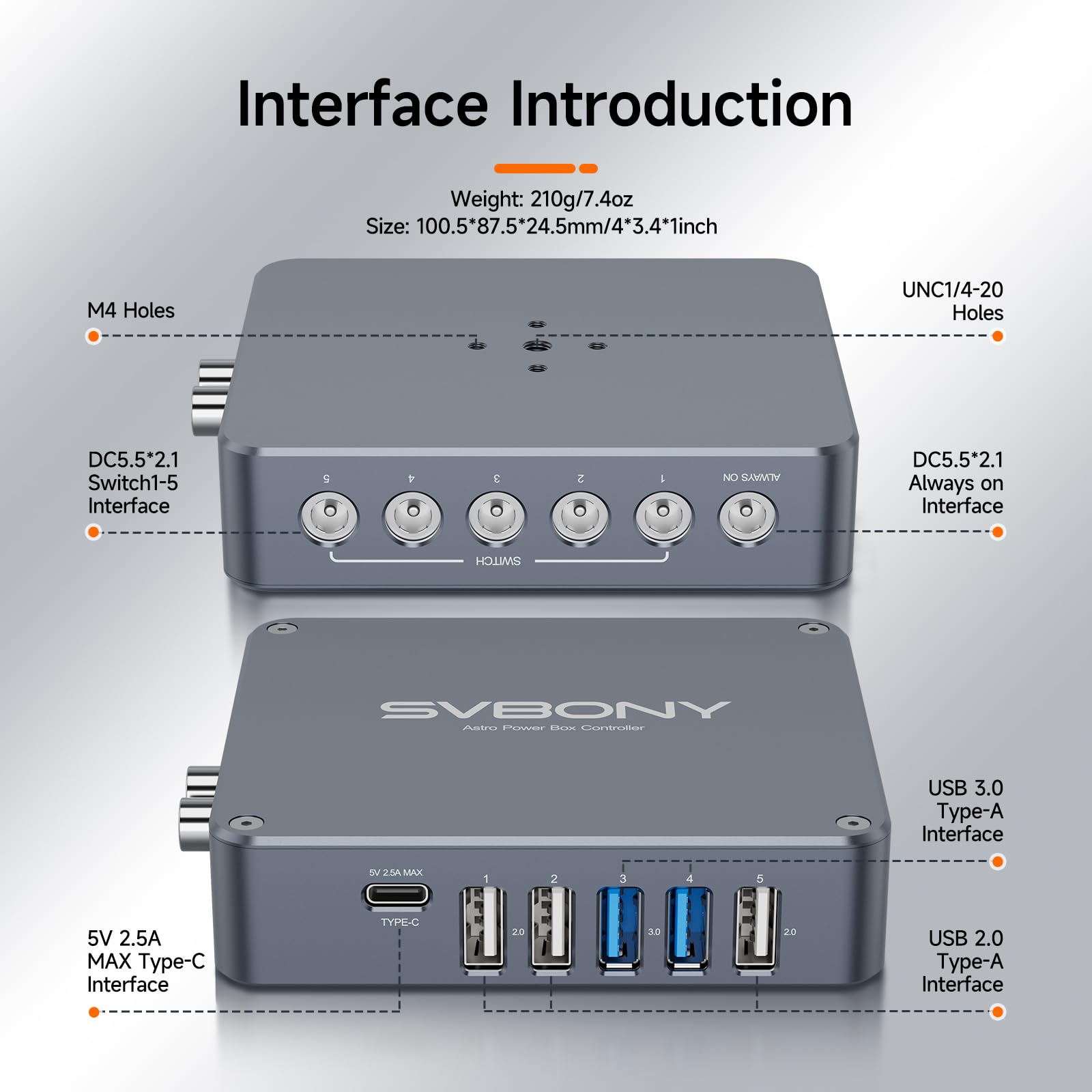

• Compact design: our usb hub power adapter packs 5x DC outputs; power hub; 4x USB ports (including Type-C); and 2x PWM channels into a single compact unit; Connect cameras; heaters; and sensors without sacrificing space; PWM1 is automatically controlled; Please do not modify it manually

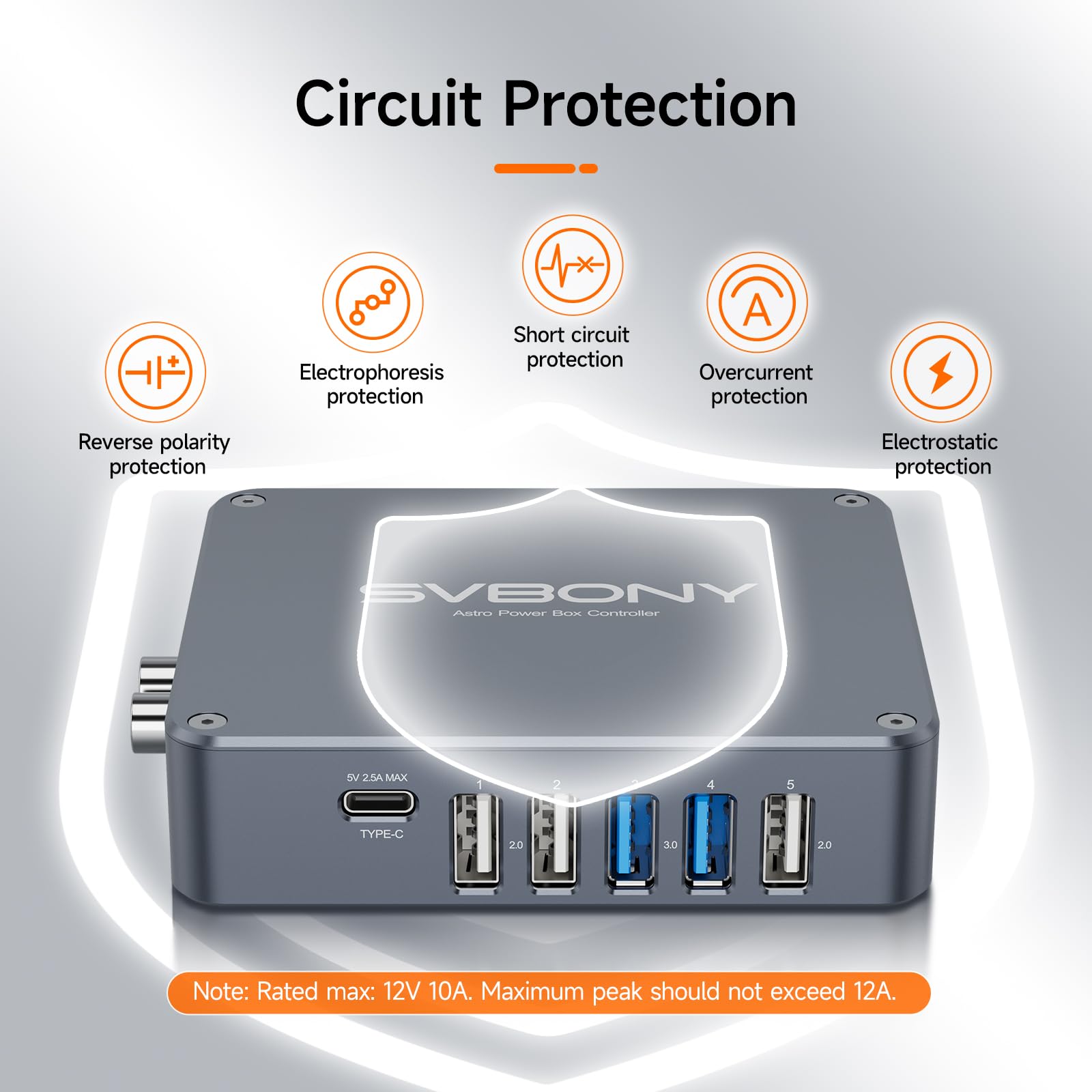

• Protected smart: includes overvoltage; undervoltage; and reverse polarity safeguards; plus smart restart tech; power hub's built tough protection keeps gear running smoothly
• Smart Auto-Control for Heating Band (PWM1): Power-on default PWM1 duty cycle: >79%; Stops heating when ambient temp ≥15°C and heating band temp > dew point +7.5°C; Stops heating when ambient temp 1–15°C and heating band temp > dew point +10°C; When ambient temp <0°C, heating band stays on; stops heating when band temp >5°C; Adjust PWM1 default heating power before reaching protection point

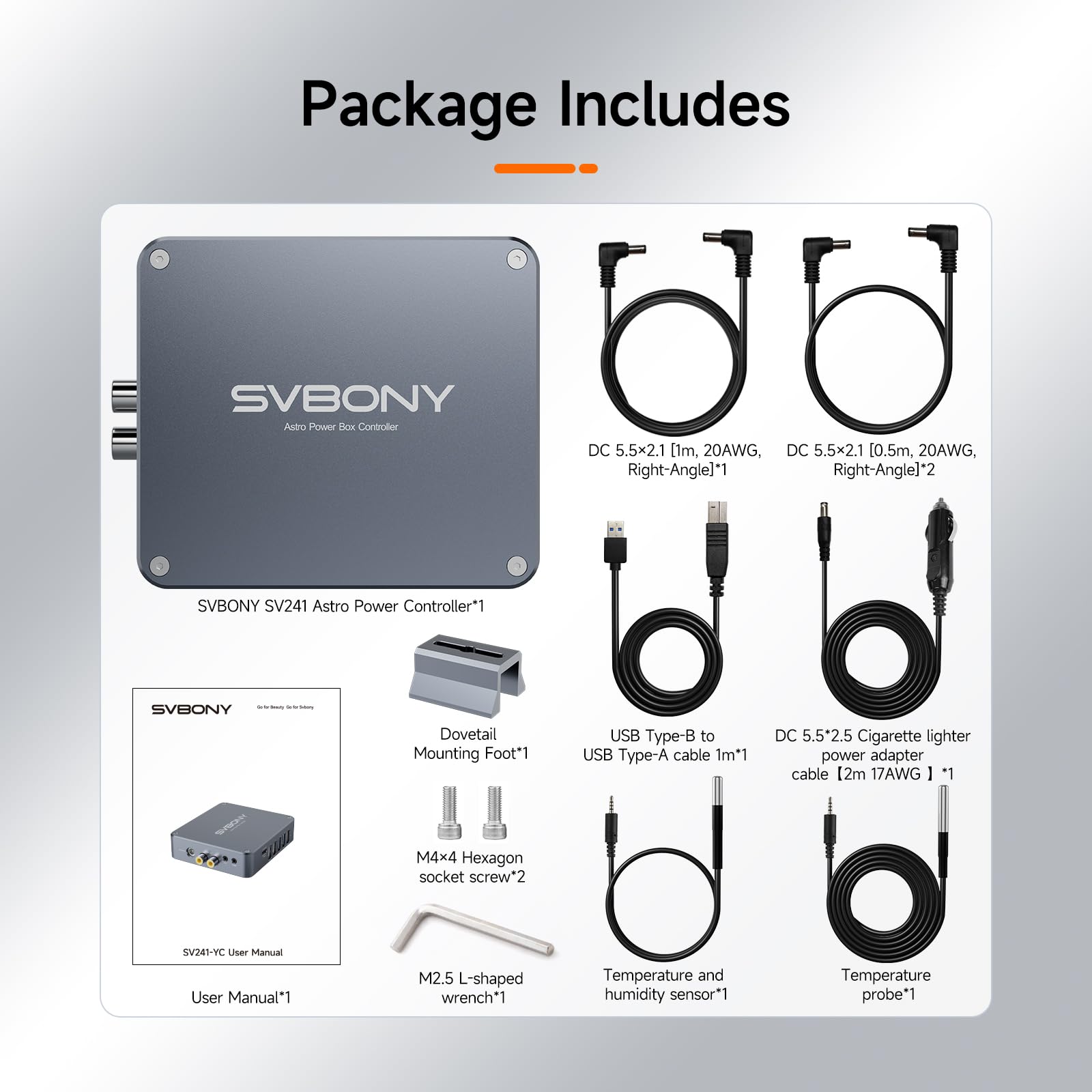

• Ready to use out of the box: SVBONY SV241 Pro power hub's rich set of accessories—including power cables; sensors; USB cable; and cigarette lighter adapter—fully meets the needs of astrophotography and field use; offering an all-in-one experience

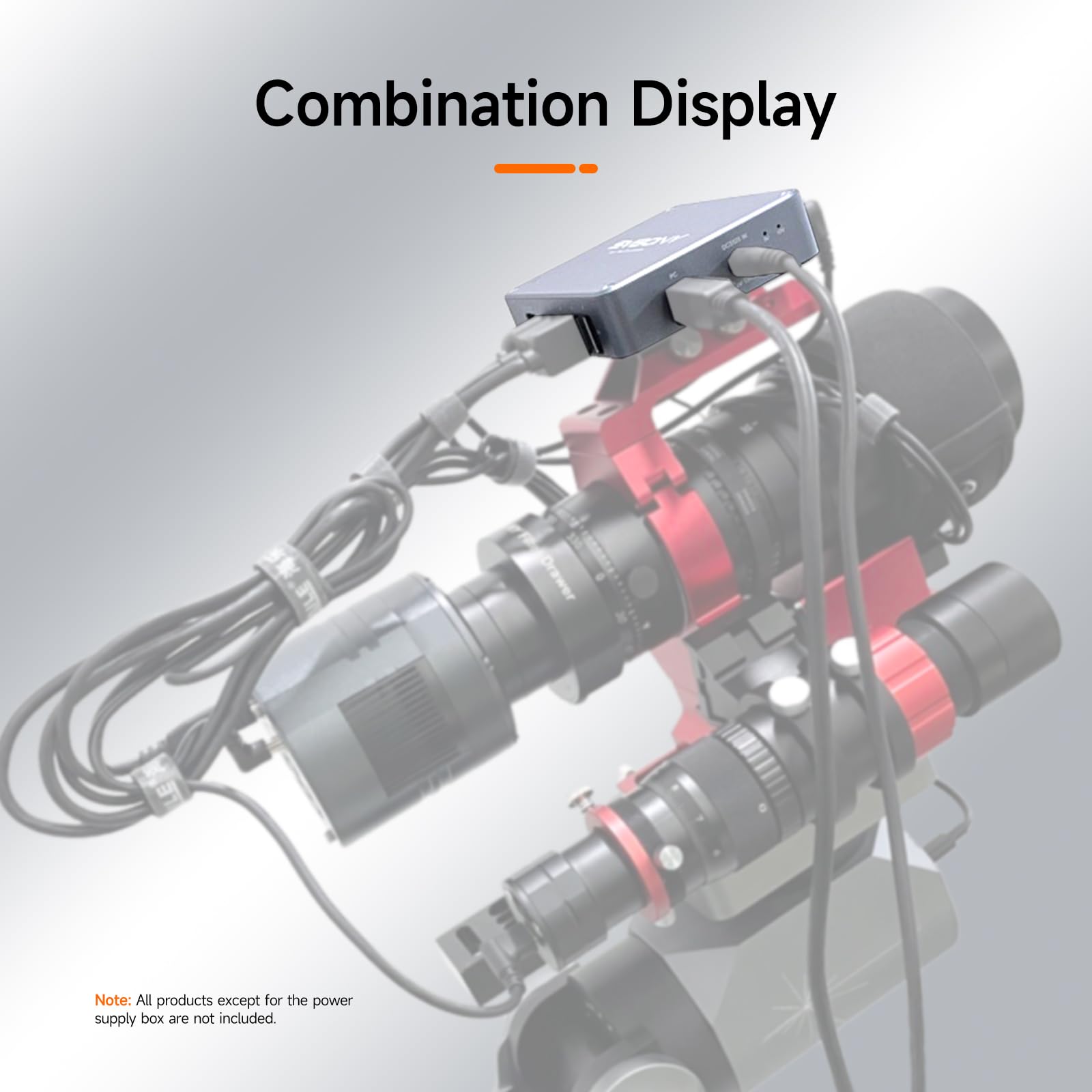

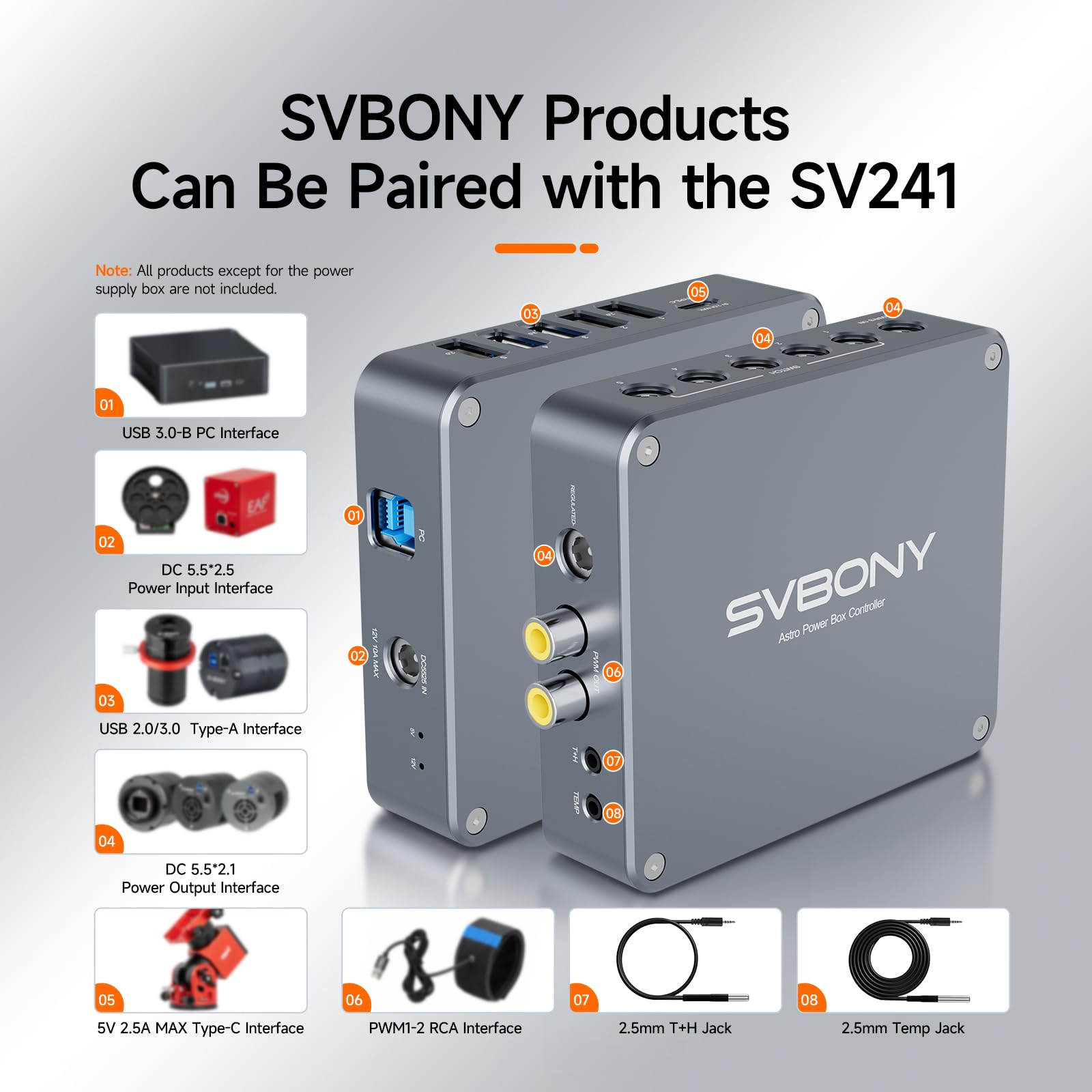

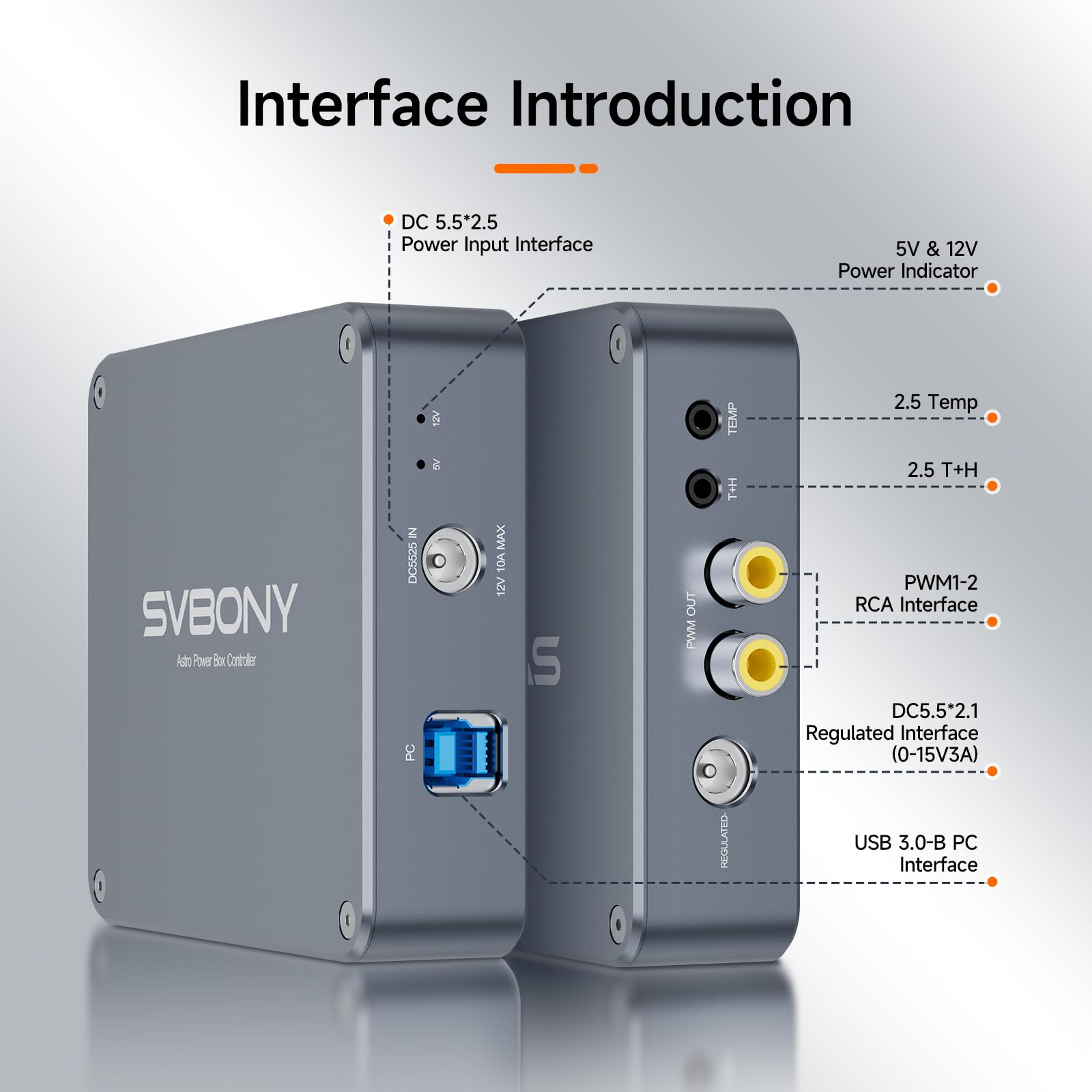

• Interface combination: power hub with DC 5.5×2.1 connects to an equatorial mount; deep-sky camera; electric CAA; electric filter wheel, and electric flat field plate; The PWM1-2 interface connects the heating belt for the main mirror or guiding camera
• Aluminum housing: SV241 Pro Astronomy USB Control Hub balances durability and portability; power hub effectively resists shocks and wear in outdoor environments to provide solid; reliable protection for your equipment
• USB hub: each USB power hub port outputs 5V 2.5A with 2.75A over-current protection; The 5V line features reverse current; short-circuit protection; independent MLCC filtering; and 15KV electrostatic discharge protection

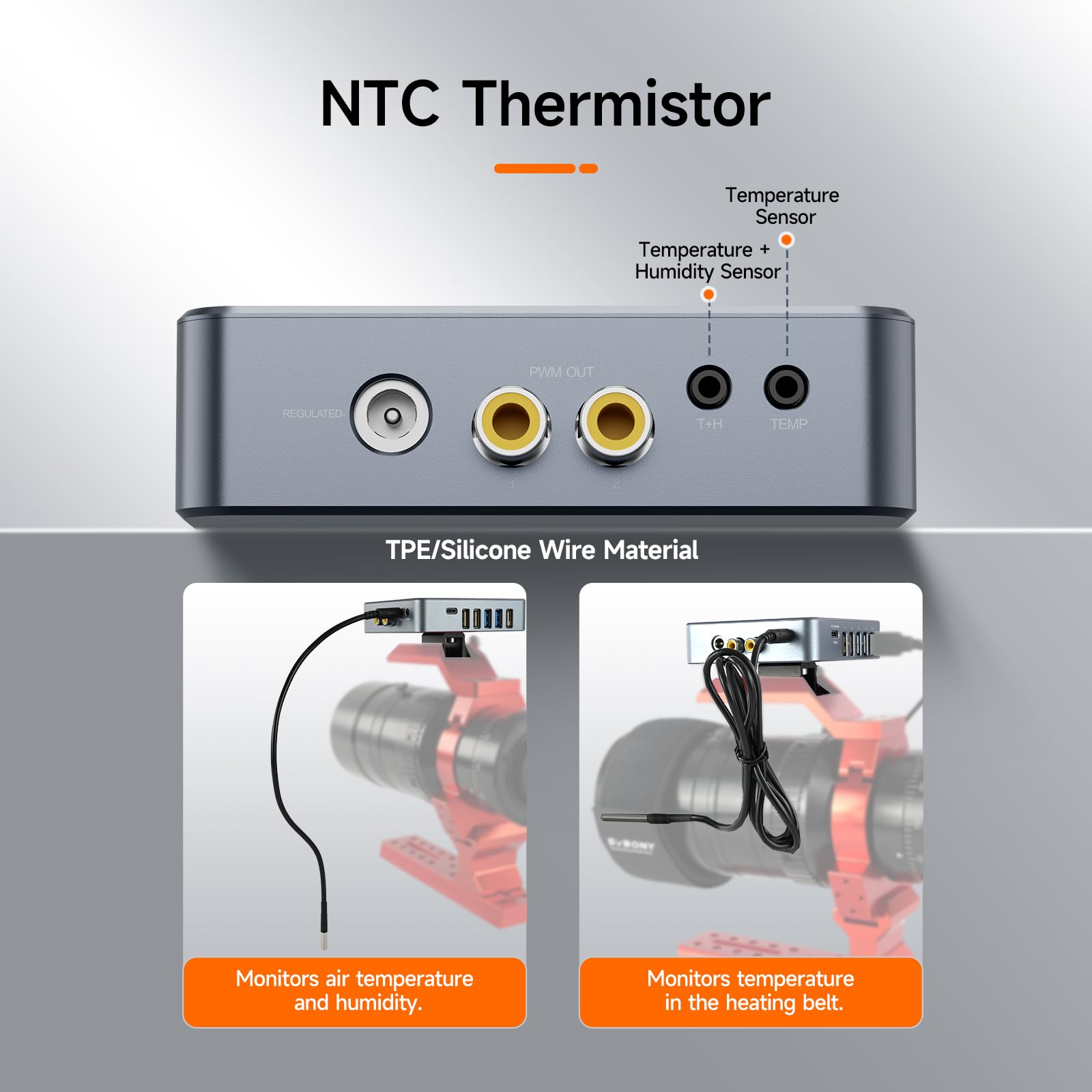

• T+H control: power hub with T+H interface collects humidity data; calculates dew point; and controls heating (humidity: 5% to 85% RH); The Temp interface monitors heating belt temperature (operating temp: -10°C to 50°C)

model number: FW9193B

Part Number: FW9193B

Package Dimensions: 7.5 x 6.1 x 3.3 inches
