Omega 23221c Axle Jack, 1 Pack

Brand: Omega Lift Equipment

Color: Black

Features:

• Quick rated capacity lift using air-actuated operation
• User friendly, self-returning spring minimizes operators effort, greatly reducing fatigue
• Inline air filter traps contaminates and protects air motor for longer life
• U.S. patented built-in by-pass device protects hydraulic system from over pumping damage

Release Date: 19-09-2013

model number: 23221c

Part Number: 23221C

Details: Product Description

Lifting Trucks and Trailers with Ease

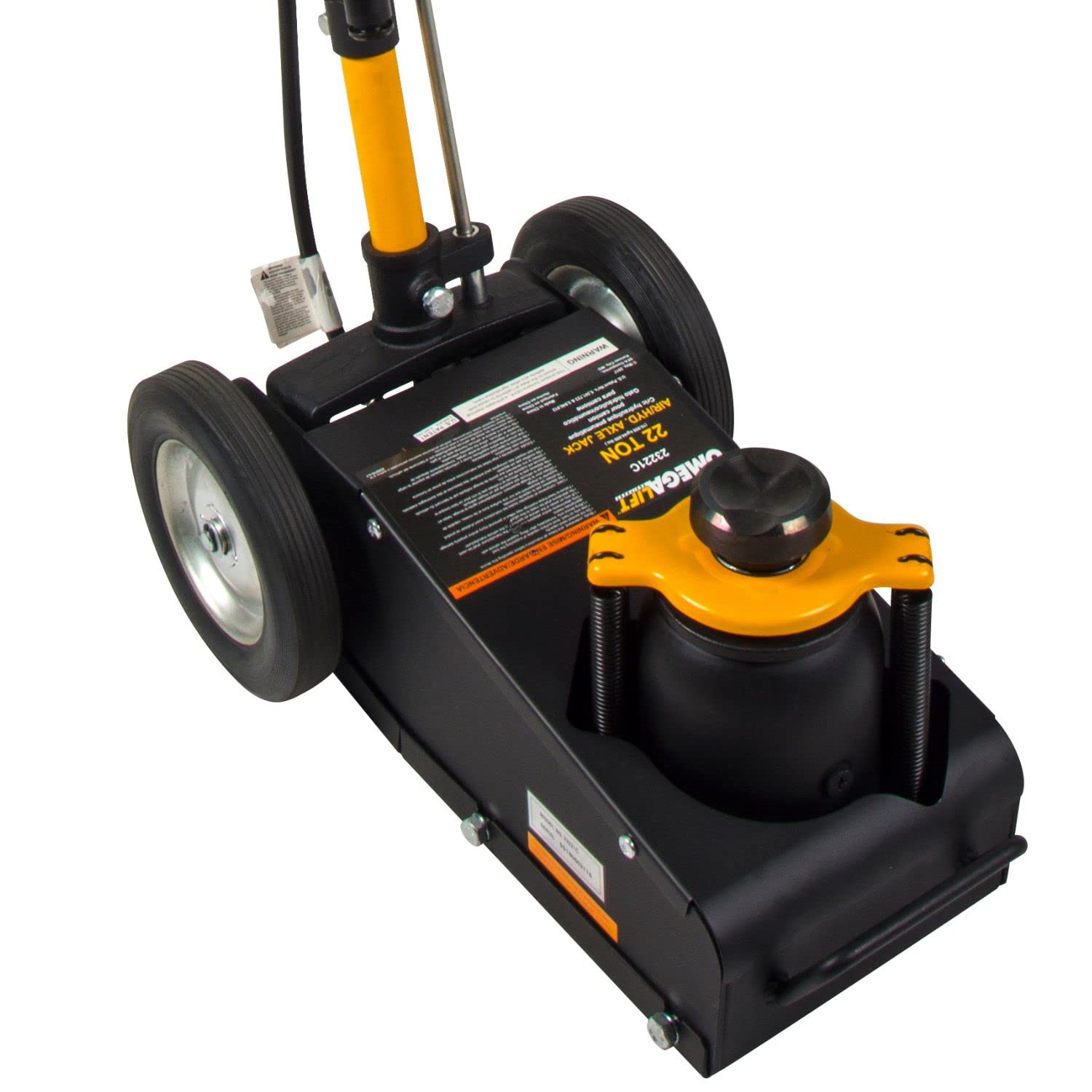

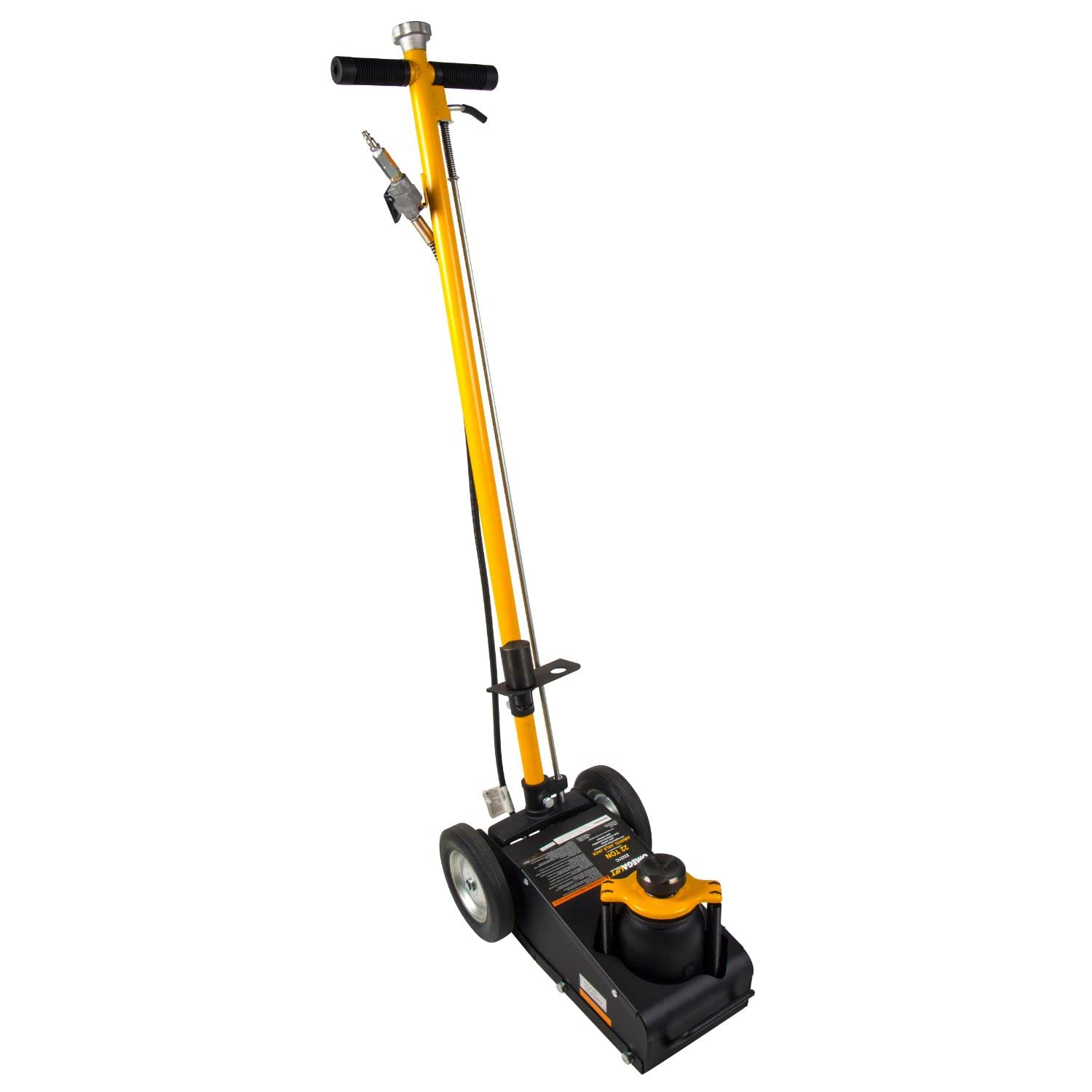

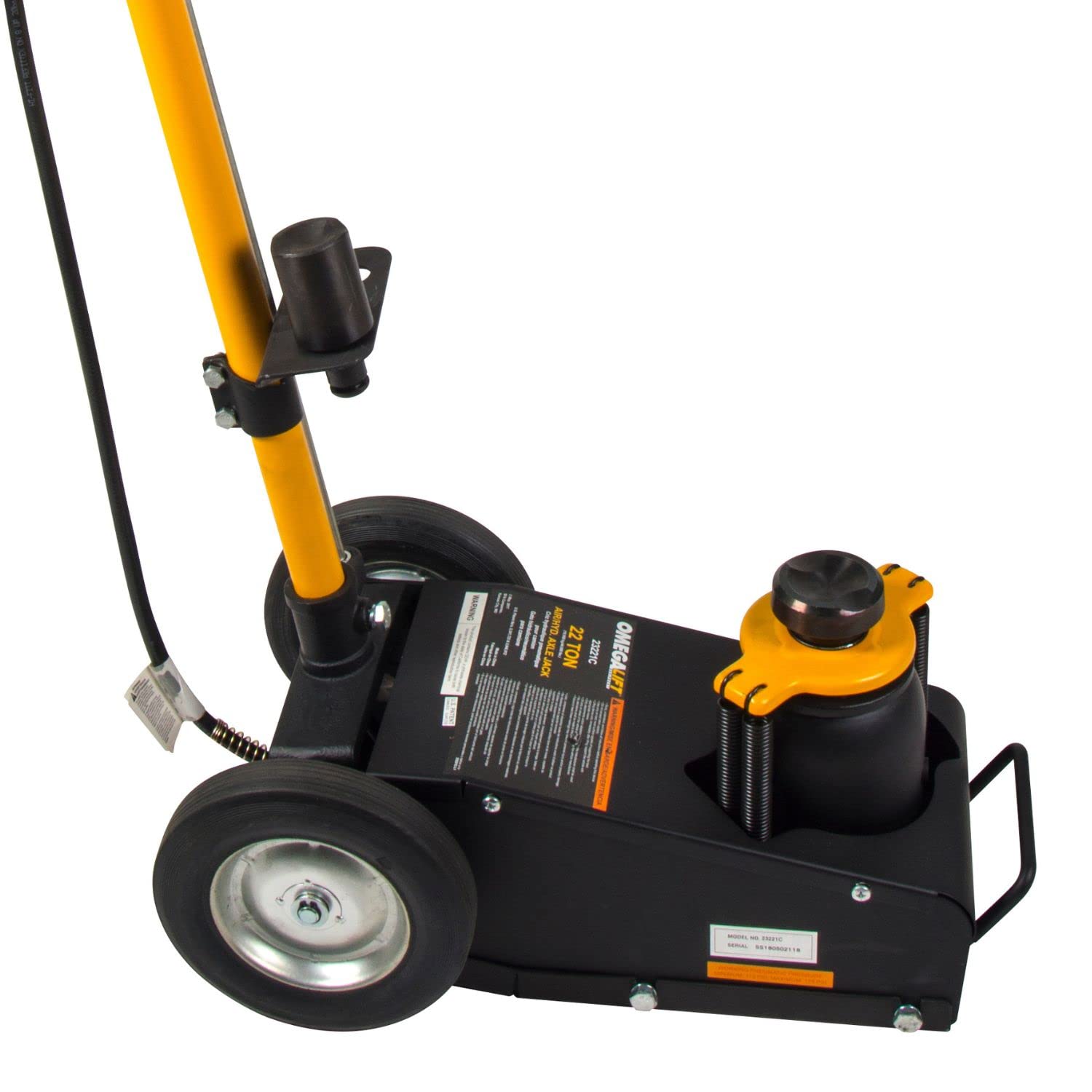

Omega 23221C Axle Jack is a 22 Ton air actuated hydraulic truck jack that is equipped with the high speed air turbo motor to raise the load to the desired height efficiently, effortless safely. With in-line air filter, it traps contaminates and protects air motor for longer life.

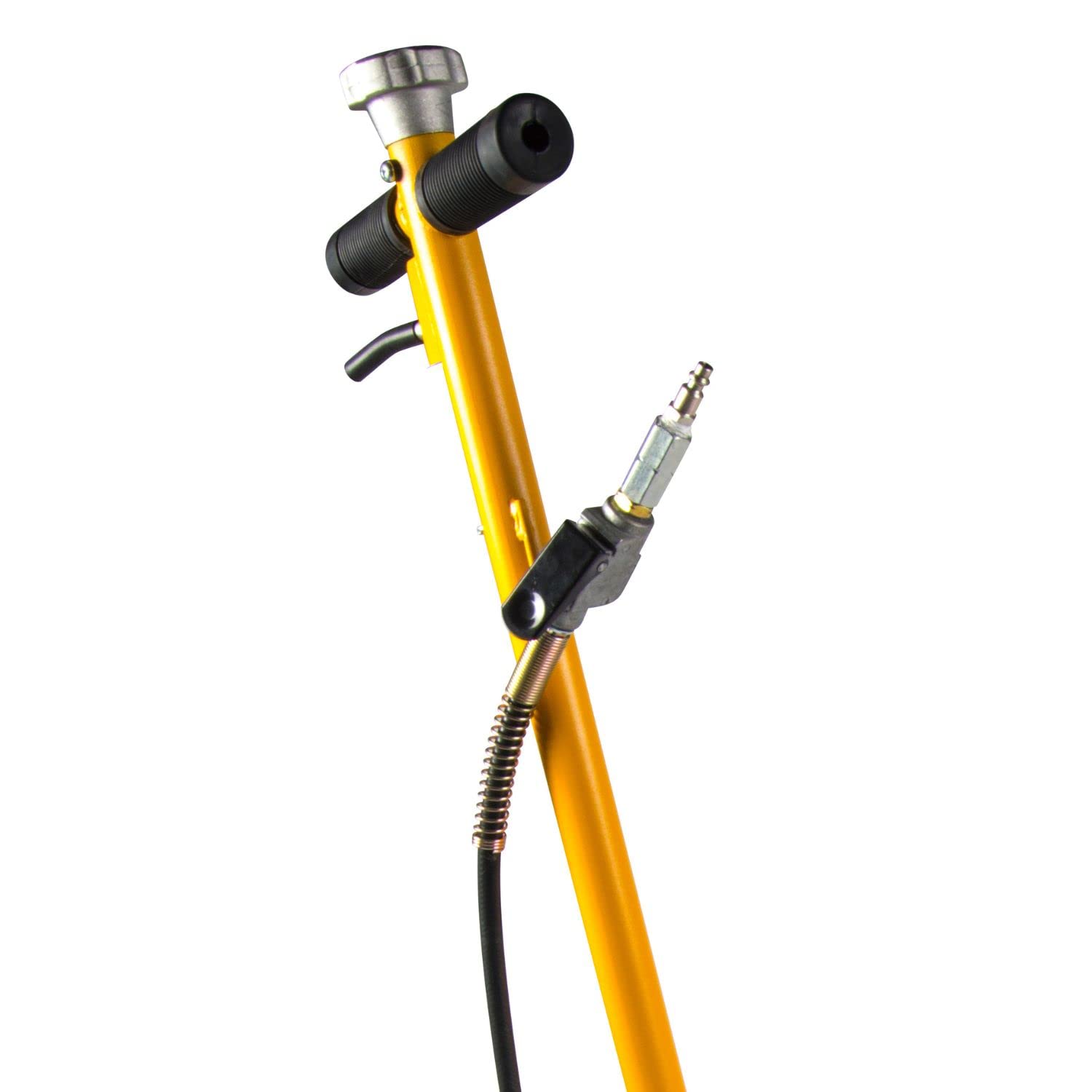

Omega 23221C Truck Jack features sturdy one piece handle assembly with the fingertip remote control. It also gives you a choice of three handle angles - 90-degrees, 45-degrees or 0-degree for easy access.
You also find the large steel and rubber wheels to give you the easy positioning and smooth motion. Its self - returning spring minimizes operators effort, and greatly reducing fatigue.
As always, Omega 23221C Truck Jack features the built-in bypass device to protect hydraulic system from over pumping damage.
In addition, there is the heat treated extension screw that allows you to pick up height adjustment and maximum lift height. - Equipped High Speed Air Turbo Motor
- Built-In Bypass Device & One Piece Handle Assembly
- Large Steel and Rubber Wheels & Self-Returning Spring
- High Speed Air Turbo Motor
- Heat Treated Extension Screw
- In Line Air Filter
Specifications - Capacity: 22 Ton
- Min. Height: 9-3/4"
- Max. Height: 23-5/8"
- Handle Length: 47-3/8"
- Jack Size: 22" x 12-5/8"
- GW: 100 Lbs
Omega 23221C Black Air/Hydraulic Axle Jack is backed by the full one year warranty from the date of the purchase.
Click the buy button now to get your Omega Truck Jack

From the Manufacturer

This Hydraulic Axle Jack features chrome plated ram that prolongs seal life and resists corrosion. Long 49" one piece handle for easy manuevering. Equipped with 2 removable extensions (1" and 2-1/2" extension adapters). Inline air filter traps contaminates and protects air motor Compact, low profile design for maximum access, with 22 Ton capacity. Fits easily and safely between wheels of a tandem axle vehicle. Effortlessly raises saddle quickly, then power lifts to desired height. Handle-top metered-control release valve for easy height adjustment. Quick rated capacity lift using air-actuated operation. User-friendly self-returning spring minimizes operator’s effort. Min. Height: 9-7/8" Max Height: 22-1/2" (with equipped 2-1/2" extension) Jack Size: 22-7/8" x 12-1/2" Net Weight: 100 Lbs.

EAN: 0031113146996

Package Dimensions: 23.5 x 13.5 x 12.0 inches
