MARKGOO Propeller 10.5X13 Pitch RH 13 Spline Tooth with Hub Kit for Mercury Mariner Outboard 25 30 35 40 45 50 55 60 70 HP HP Boat Motor Engine Parts Aluminum Prop fits 3.25 Gearcase 48-816704A45

Brand: MARKGOO

Color: Black

Features:

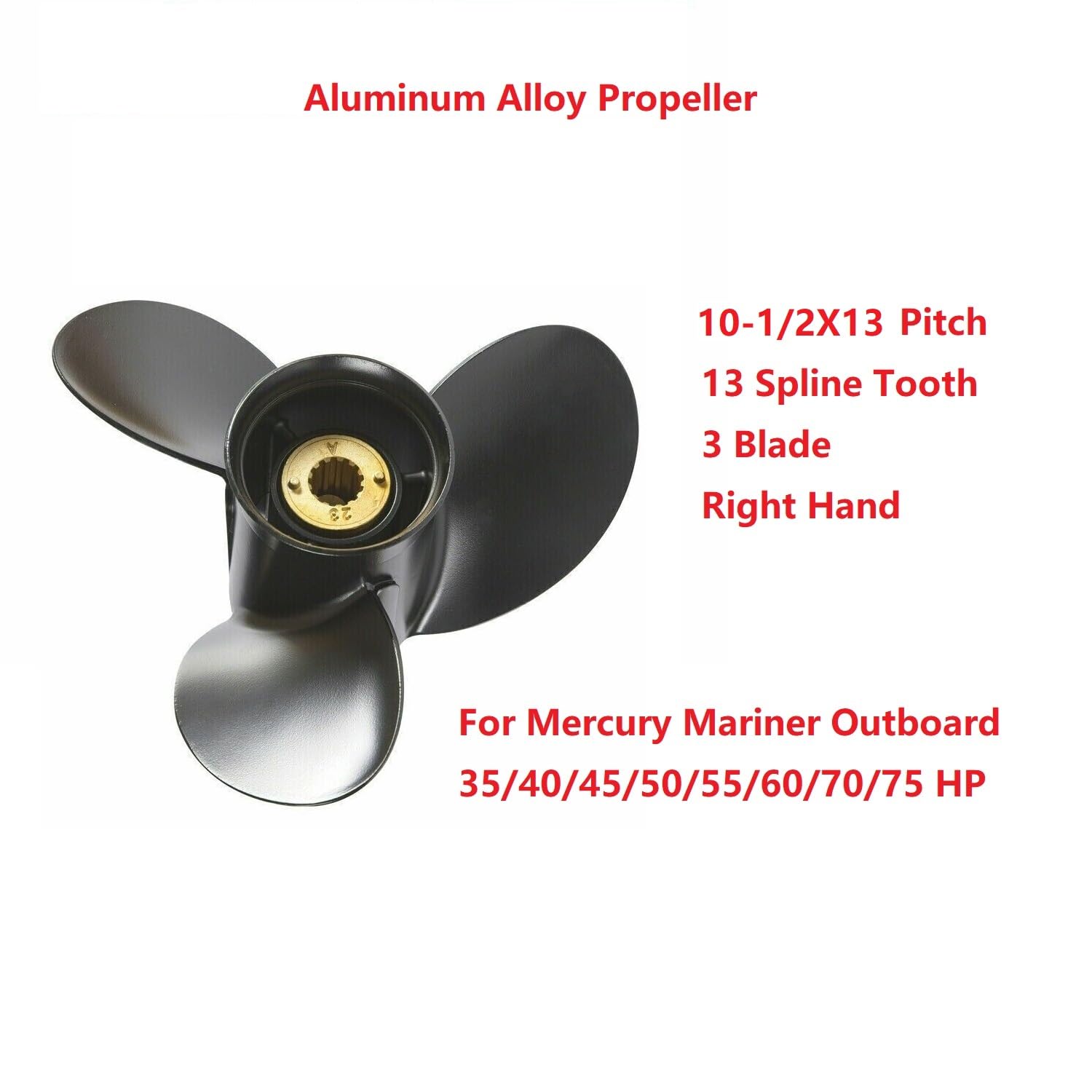

• Propeller Specification: Diameter 10-1/2X13 Pitch, 13 Spline Tooth, Right Hand Rotation, 3 Blades Aluminum-alloy Propeller fits 3-1/4 inches Gearcase.
• Easy to maintain and repair.
• Good overall performance and value.
• Recommended for boats with top speeds less than 50 MPH / 80 KPH
• 3 Blade Die-Cast Aluminum.

model number: 48-816704A45

Part Number: 48-816704A45

Details: MARKGOO Outboard Propeller 10-1/2X13 Pitch 13 Spline Tooth for Mercury Mariner Force Outboard Engines 35 40 45 50 55 60 70 75 HP F30 F40 F50 F60
OEM Part No.48-816704A45,816704A40. it fit mercury, mariner and force outboard Engines 25-75 HP, RH, 3 1/4" Gearcase.
Recommended fit Engines less than 250hp, Top speed less than 50 mph / 80 kph
Boat types: Houseboat, Inflatable - Soft Hull, Inshore Fishing, Pontoon
PROPELLER SPECIFICATION:
Diameter: 10.5 inch
Pitch: 13 inch
Blade: 3
Tooth: 13

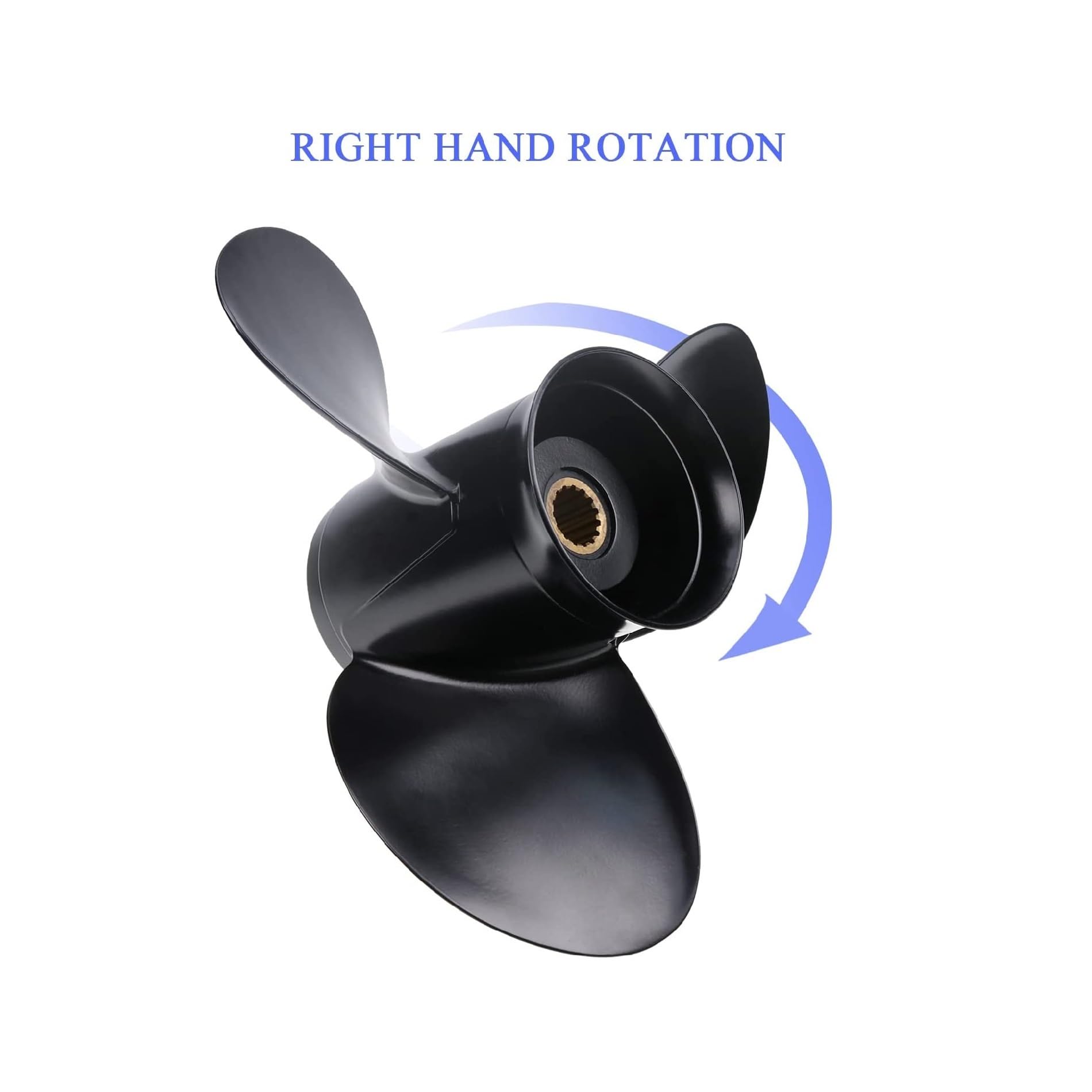

Rotation: Right
Material: Alloy-Aluminum
VERY IMPORTANT: Kindly please check your boat handbook and find out correct size for your propeller. we suggest you to confirm your own propeller's diameter, pitch, rotation, OEM number, horsepower before the purchase.
APPLICATION:
Mercury Mariner 25 HP 1999-2005
Mercury Mariner 30 HP 2010-UP
Mercury Mariner 35 HP 1984-1989
Mercury Mariner 40 HP 1977-UP
Mercury Mariner 45 HP 1986-1989
Mercury Mariner 48 HP all years
Mercury Mariner 50 HP 1977-UP
Mercury Mariner 55 HP 1995-UP
Mercury Mariner 60 HP 1978-UP
Mercury Mariner 70 HP 1983
Fits Force 40 HP 1995-1998
Fits Force 50 HP 1995-1998
Fits Force 70 HP 1991-1995
Fits Force 75 HP 1996-1998
INSTALLATION INSTRUCTION:

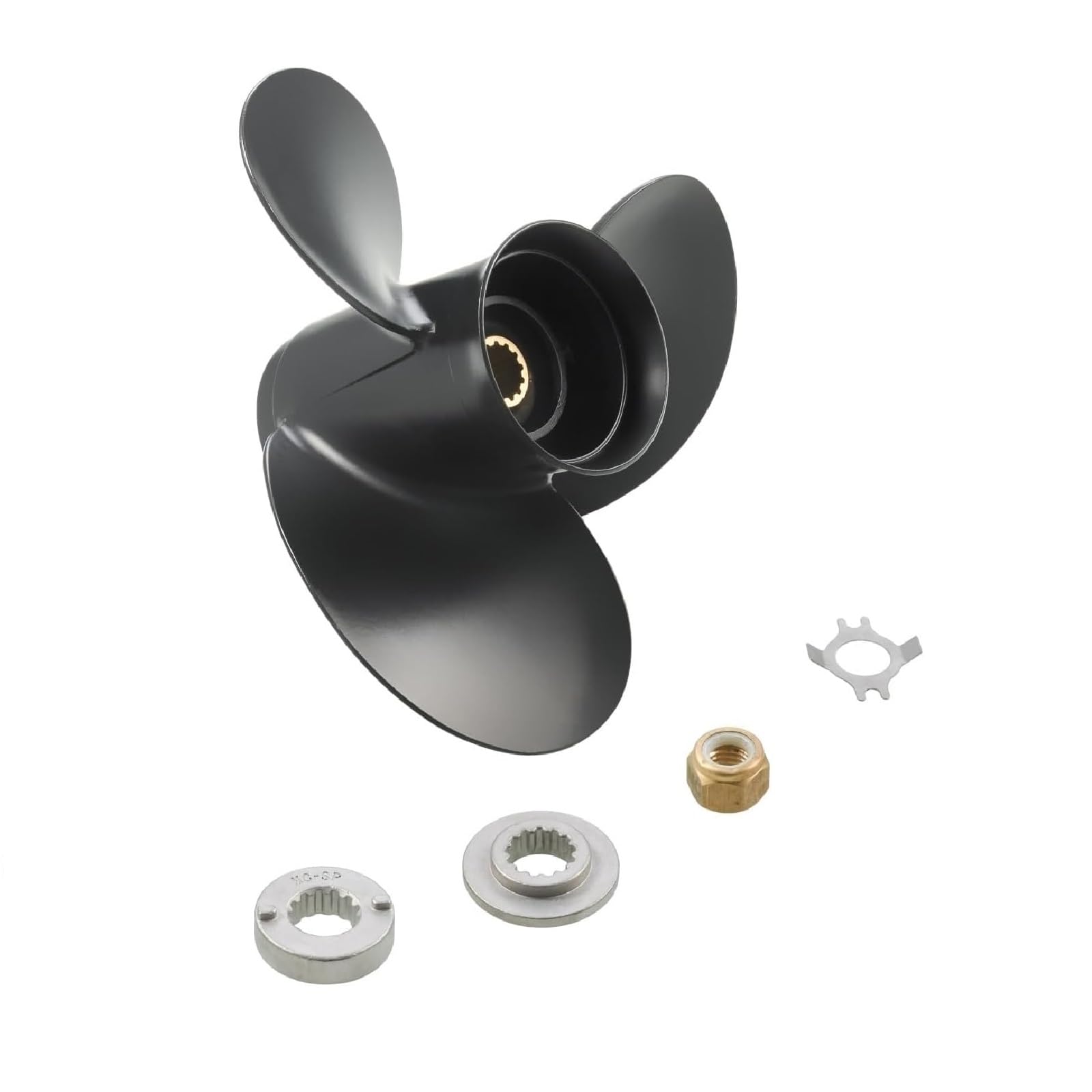

The propeller includes hub kit (hub, splined hub, thrust washer, prop nut and keeper).
Just remove prop locknut, locknut retainer and forward thrust washer. Then Install forward thrust washer, Insert drive sleeve into prop, Slide prop on prop shaft, Insert drive sleeve adapter, Slide locknut retainer, Install prop locknut, Insert sth to prevent spinning.

Package Dimensions: 12.9 x 11.4 x 6.1 inches
