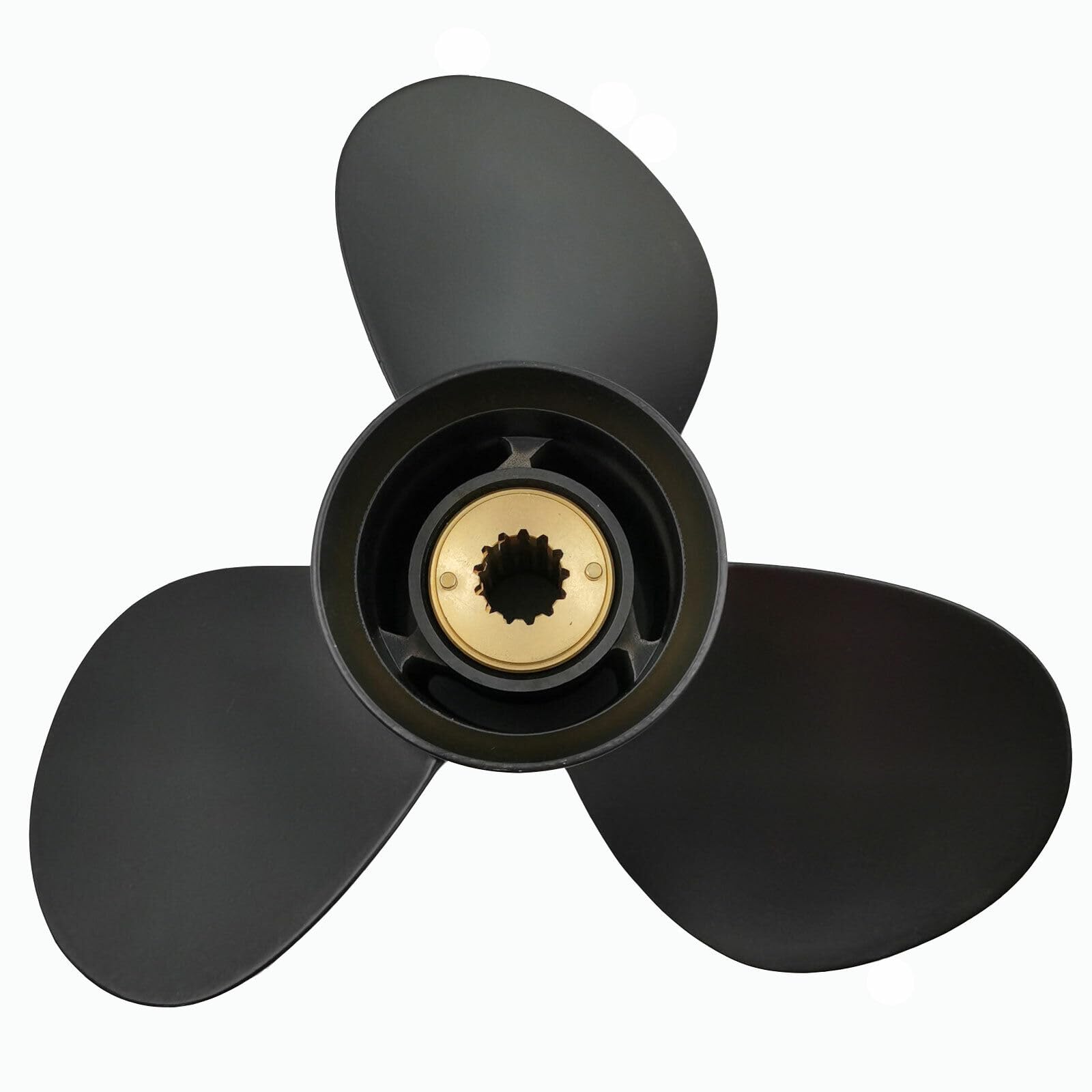

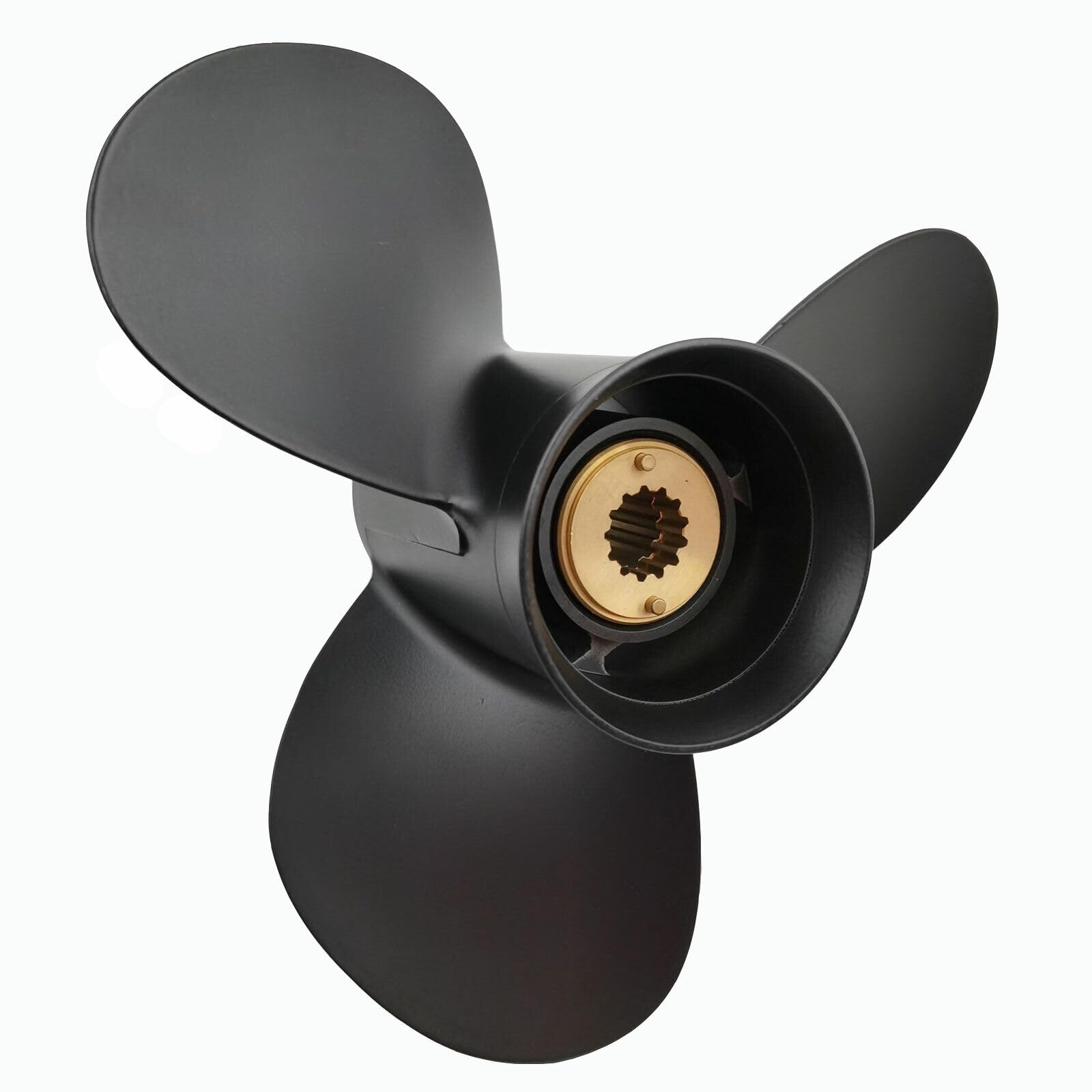

MARKGOO Propeller 10 5/8x12 Pitch RH 13 Spline Tooth with Hardware Nut Hub Kit for Mercury Mariner Outboard 25 30 35 40 45 50 55 60 70 HP HP Boat Motor Engine Parts Aluminum Prop 48-73134A45

Brand: MARKGOO

Color: Black

Features:

• Propeller Specification: Diameter 10 5/8"X12" Pitch, 13 Spline Tooth, Right Hand Rotation, 3 Blades Aluminum-alloy Propeller, 3-1/4" Gearcase.
• Easy to maintain and repair
• Good overall performance and value
• Recommended for boats with top speeds less than 50 MPH/ 80 KPH
• 3 Blade Die-Cast Aluminum

model number: Propeller

Part Number: 48-73134A45

Details: MARKGOO Outboard Propeller 10-5/8X12 Pitch 13 Spline Tooth for Mercury Mariner Force Outboard Engines 35 40 45 50 55 60 70 75 HP F30 F40 F50 F60
OEM Part No.48-73134A40, 48-73134A45, 48-73137A4. it fit mercury, mariner and force outboard Engines 25-75 HP, RH, 3 1/4" Gearcase.
Recommended fit Engines less than 250hp, Top speed less than 50 mph / 80 kph
Boat types: Houseboat, Inflatable - Soft Hull, Inshore Fishing, Pontoon
PROPELLER SPECIFICATION:
Diameter: 10 5/8 inch
Pitch: 12 inch
Blade: 3
Spline Tooth: 13

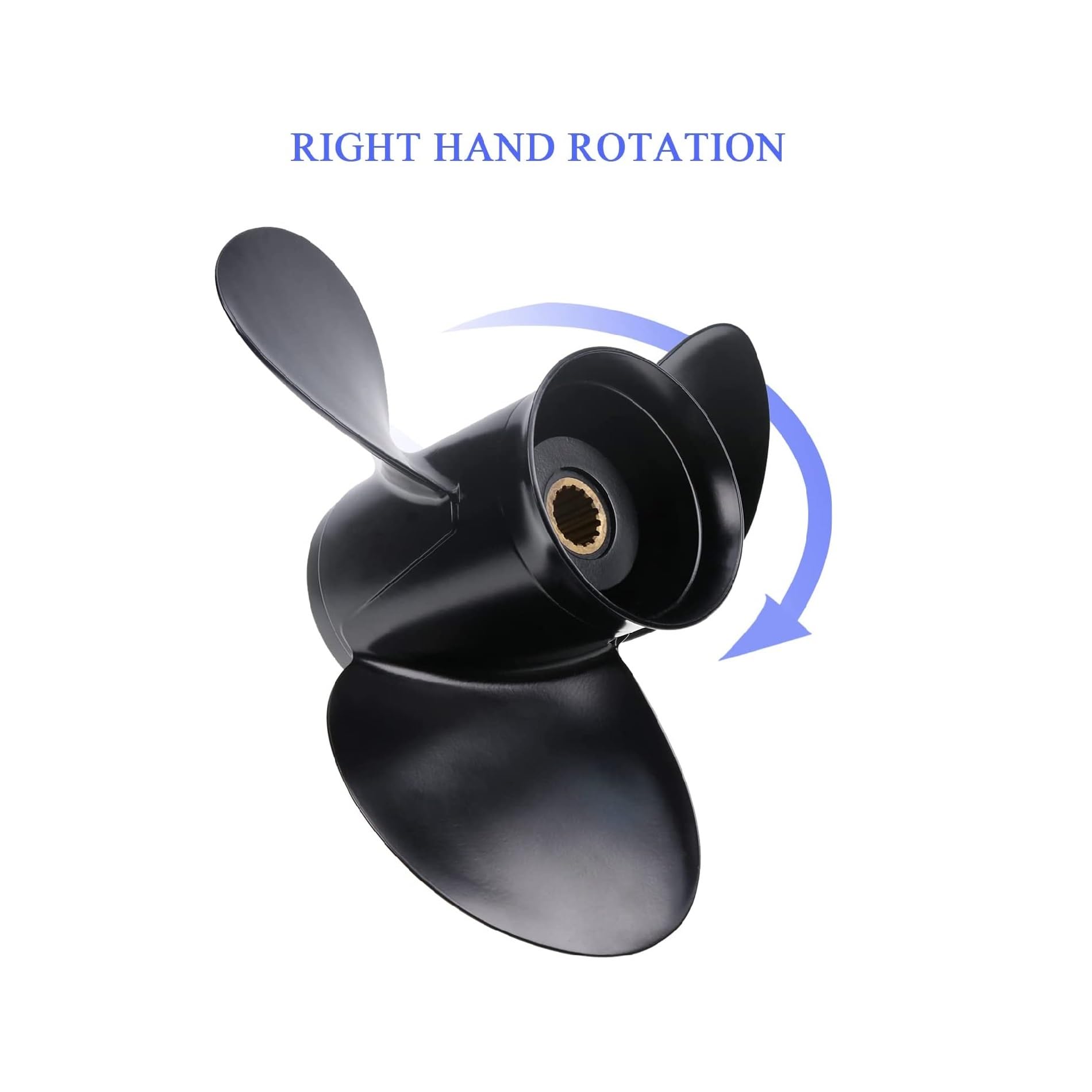

Rotation: Right
Material: Alloy-Aluminum
VERY IMPORTANT: Kindly please check your boat handbook and find out correct size for your propeller. we suggest you to confirm your own propeller's diameter, pitch, rotation,OEM number, horsepower before the purchase.
APPLICATION:
25 HP 1999-2005
30 HP 2010-UP
35 HP 1984-1989
40 HP 1977-UP
45 HP 1986-1989
48 HP all years
50 HP 1977-UP
55 HP 1995-UP
60 HP 1978-UP
70 HP 1983
Fits Force 40/50 HP 1995-1998
Fits Force 70 HP 1991-1995
Fits Force 75 HP 1996-1998
INSTALLATION INSTRUCTION:

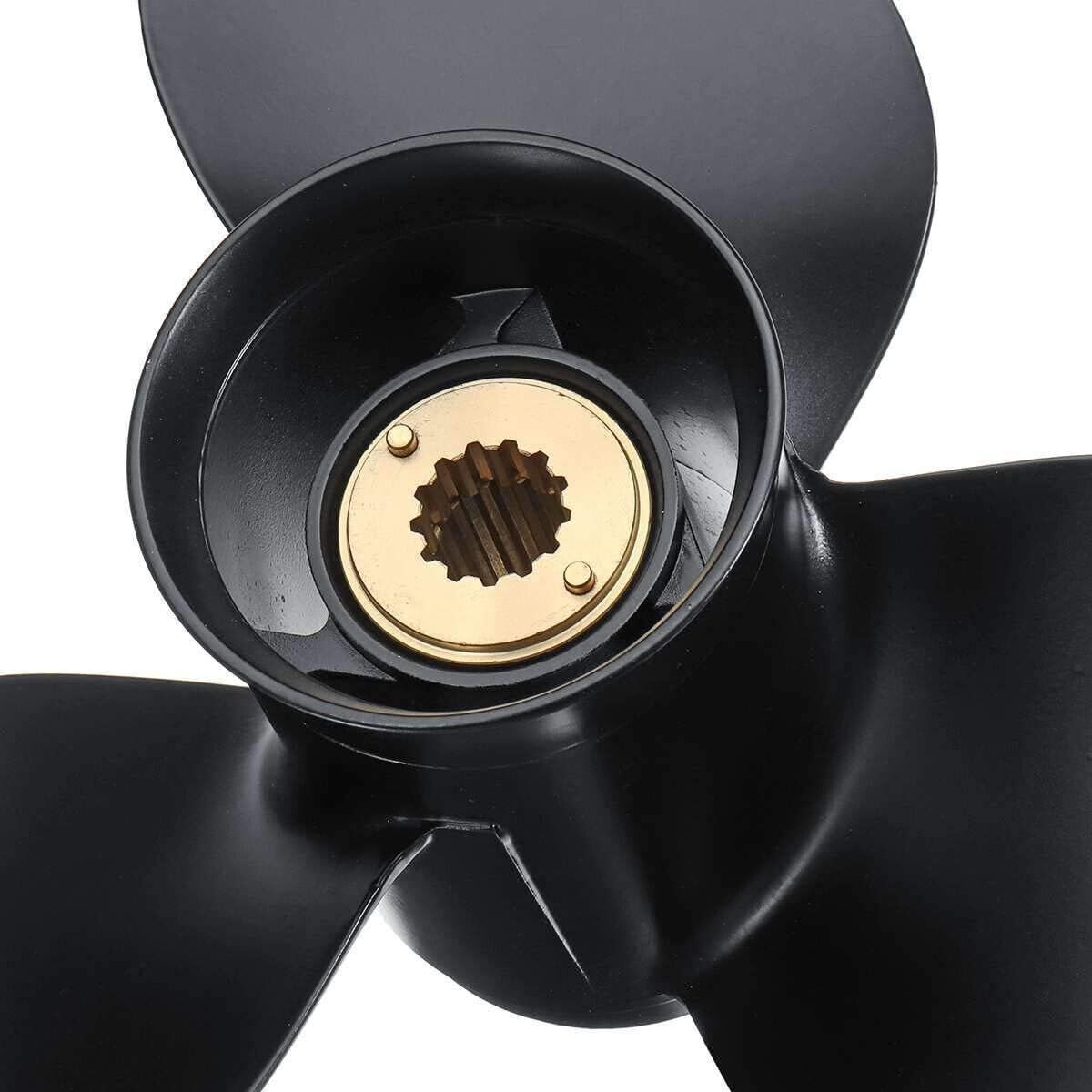

The propeller includes hub kit (hub, splined hub, thrust washer, prop nut and keeper).
Just remove prop locknut, locknut retainer and forward thrust washer. Then Install forward thrust washer, Insert drive sleeve into prop, Slide prop on prop shaft, Insert drive sleeve adapter, Slide locknut retainer, Install prop locknut, Insert sth to prevent spinning.

Package Dimensions: 13.0 x 11.5 x 6.2 inches
