Kwikee Step Motor Conversion Kit for B Linkage, Replacement Parts for Kwikee 22, 23, 28A, 30, 32, 33, 34, 35, 36, 38, 40 series steps - 379769

Brand: Kwikee

Features:

• “B" Linkage Gearbox.Fit Type: Universal Fit
• Replacement kit for 28/31/37/39 Step Series; Step is not included with this repair kit

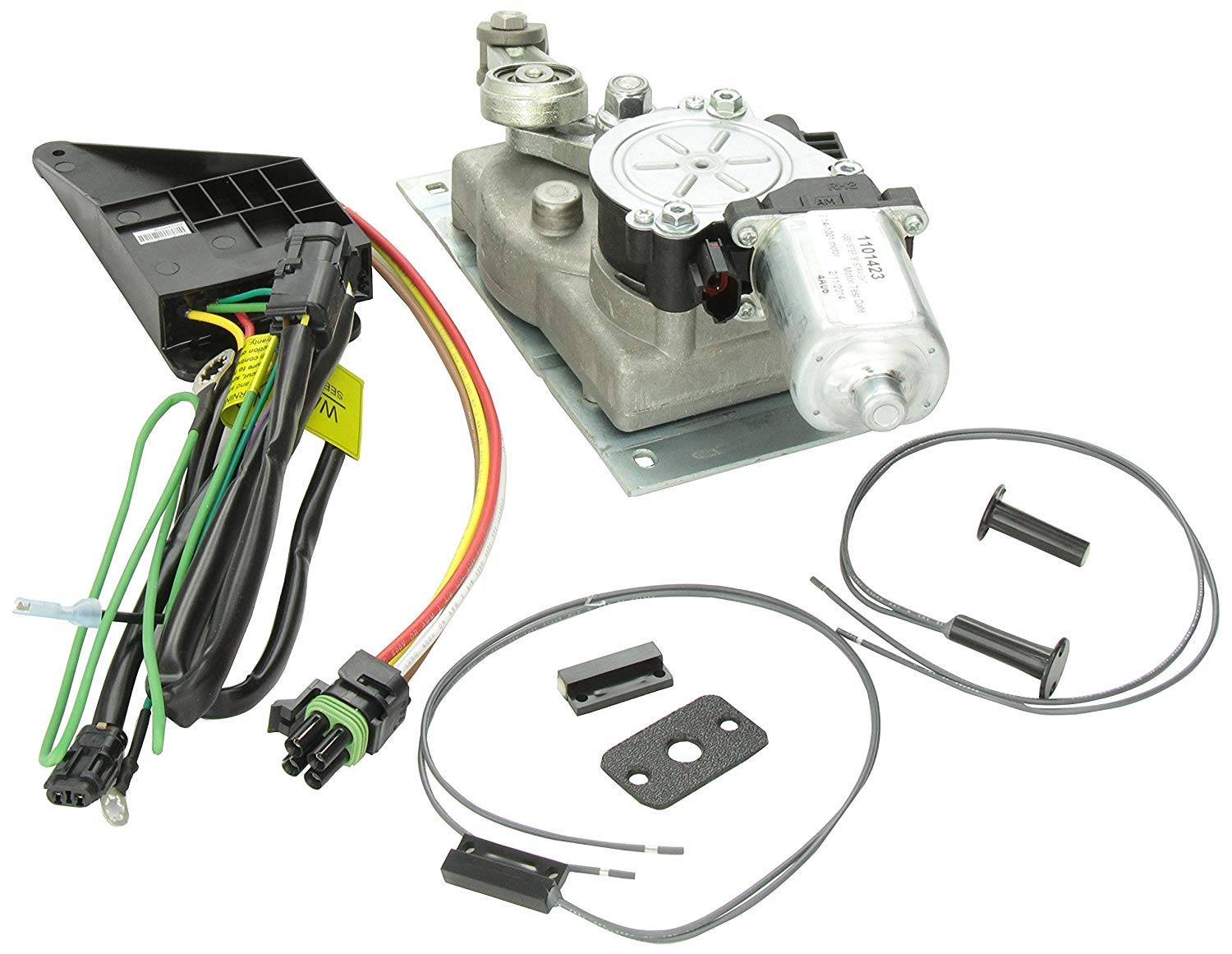

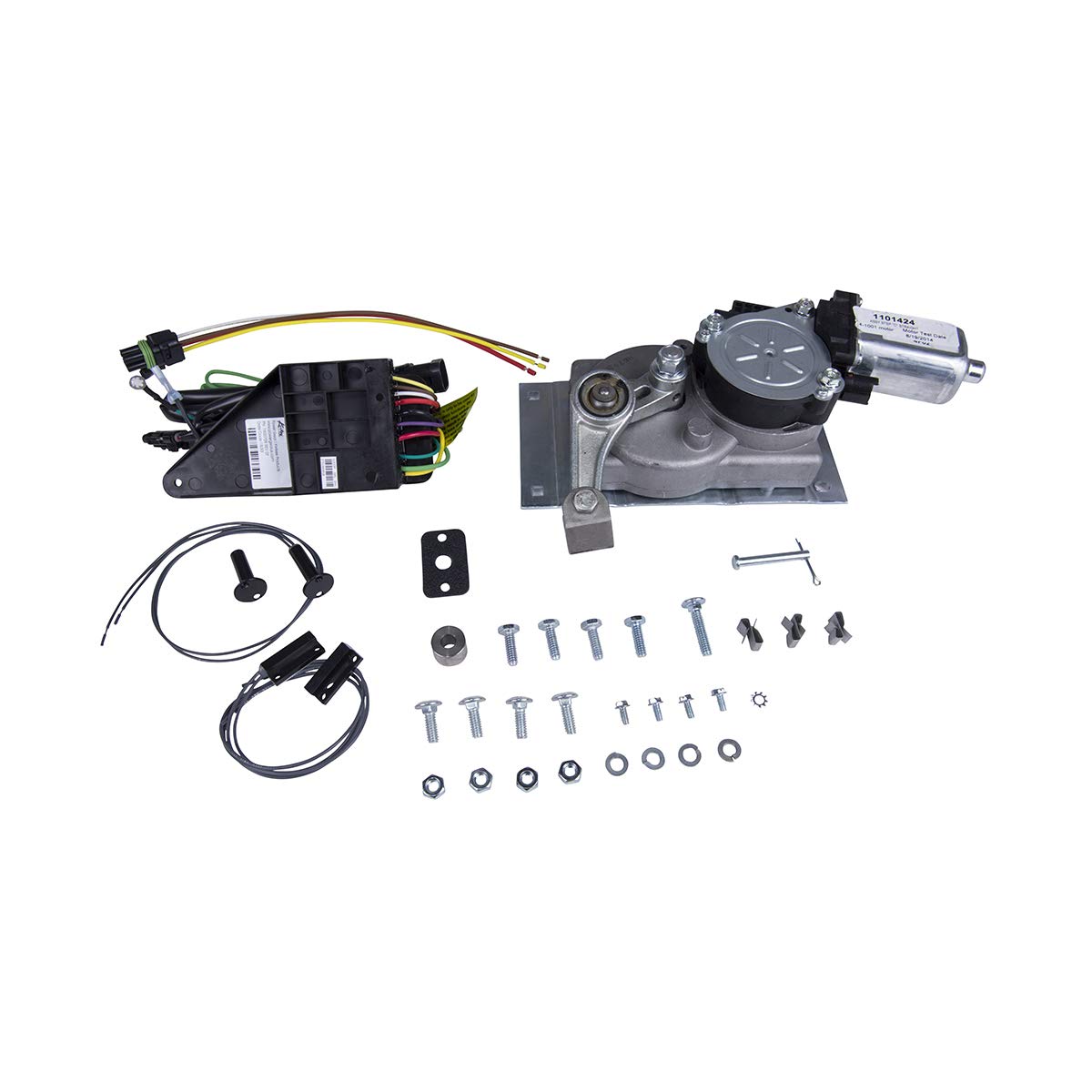

• This replacement kit contains an IMGL (integrated motor/gear box/linkage assembly, a Control Unit, four-way pigtail, and fastener kit.
• Replacement "B" Integrated Motor/Gear Box Linkage Kit and Control Unit For Kwikee Step Series 28, 31, 37

Release Date: 20-05-2016

model number: 909772000

Part Number: 379769

Details: The Kwikee Step Motor, Gearbox Upgrade kit is an electric step improvement. Features: • The Integrated Motor/Gear Box/Linkage (IMGL) offers improved performance and longer life. • 40% more motor torque gives step a strong lock-out and solid feel. • Fully-sealed dual ball bearing improves efficiency and requires no maintenance. Case halves seal to keep consistent alignment and protect gear from the elements. • Investment cast zinc-plated steel linkage assembly is strong and more resistant to corrosion. The brass spherical outer cage hardened ball in the linkage is stronger, wears longer and will not oblong. • The 9510 Control Unit keeps the step open when the door is open. Step can be locked in the extended position, but cannot be locked in the retracted position. Automatic ignition override makes step follow the door. • Note: This is Kwikee Part Number 909772000

EAN: 0088805721917

Package Dimensions: 12.0 x 8.8 x 8.8 inches
