Explosion Proof Instrument Enclosure - Class I, II, III Div 1 and 2 - Trunnion - Glass Lens - 4" Dome

Brand: Larson Electronics

Color: silver

Features:

• Contact us today for information about custom options tailored to meet your specific needs
• For safety reasons, we cannot accept returns on any hazardous location, explosion proof or intrinsically safe products.
• Once these products leave the factory, we must re-build and re-certify the units to specification to ensure every unit sold is safe to use.

model number: 151116

Part Number: 151116

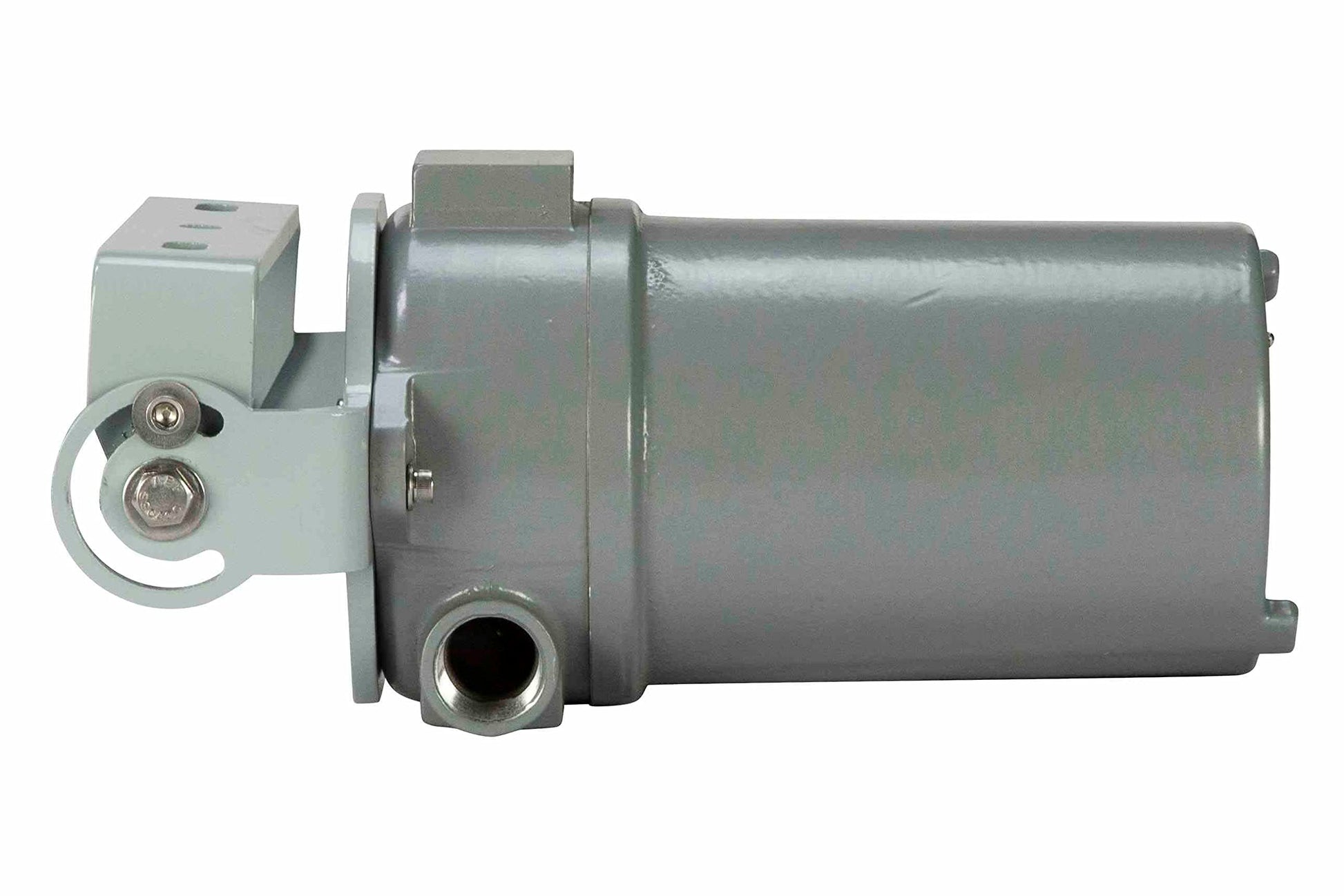

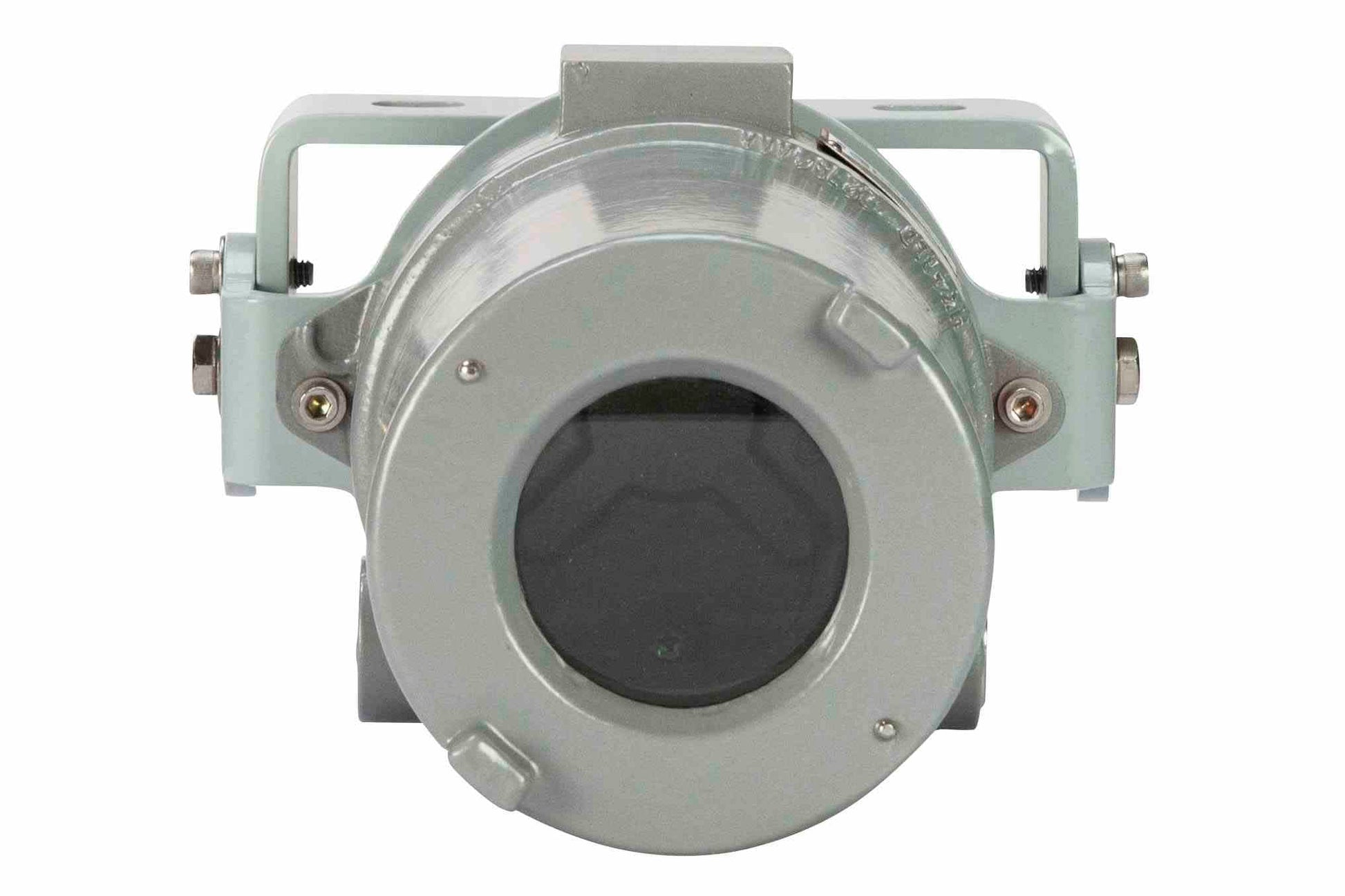

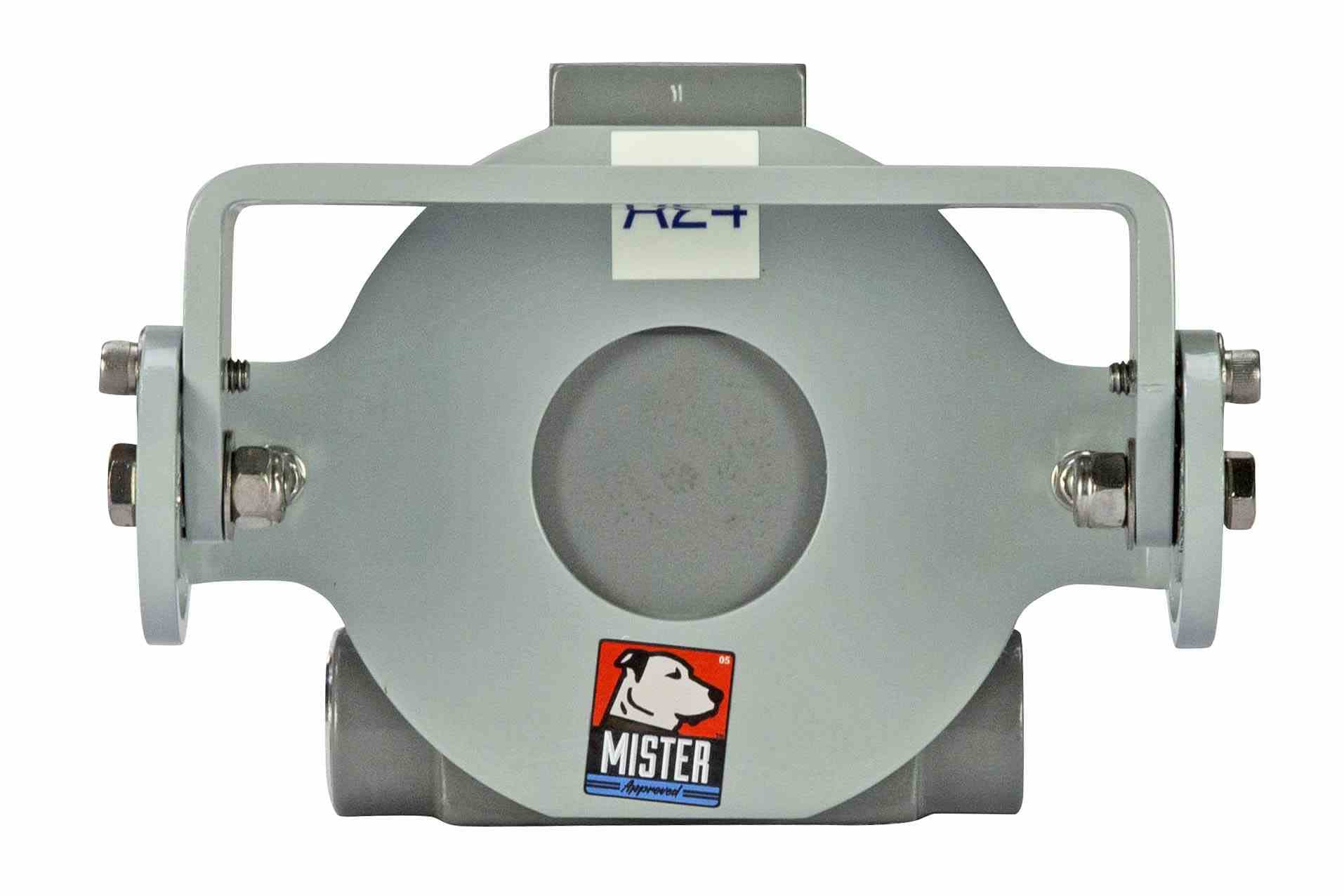

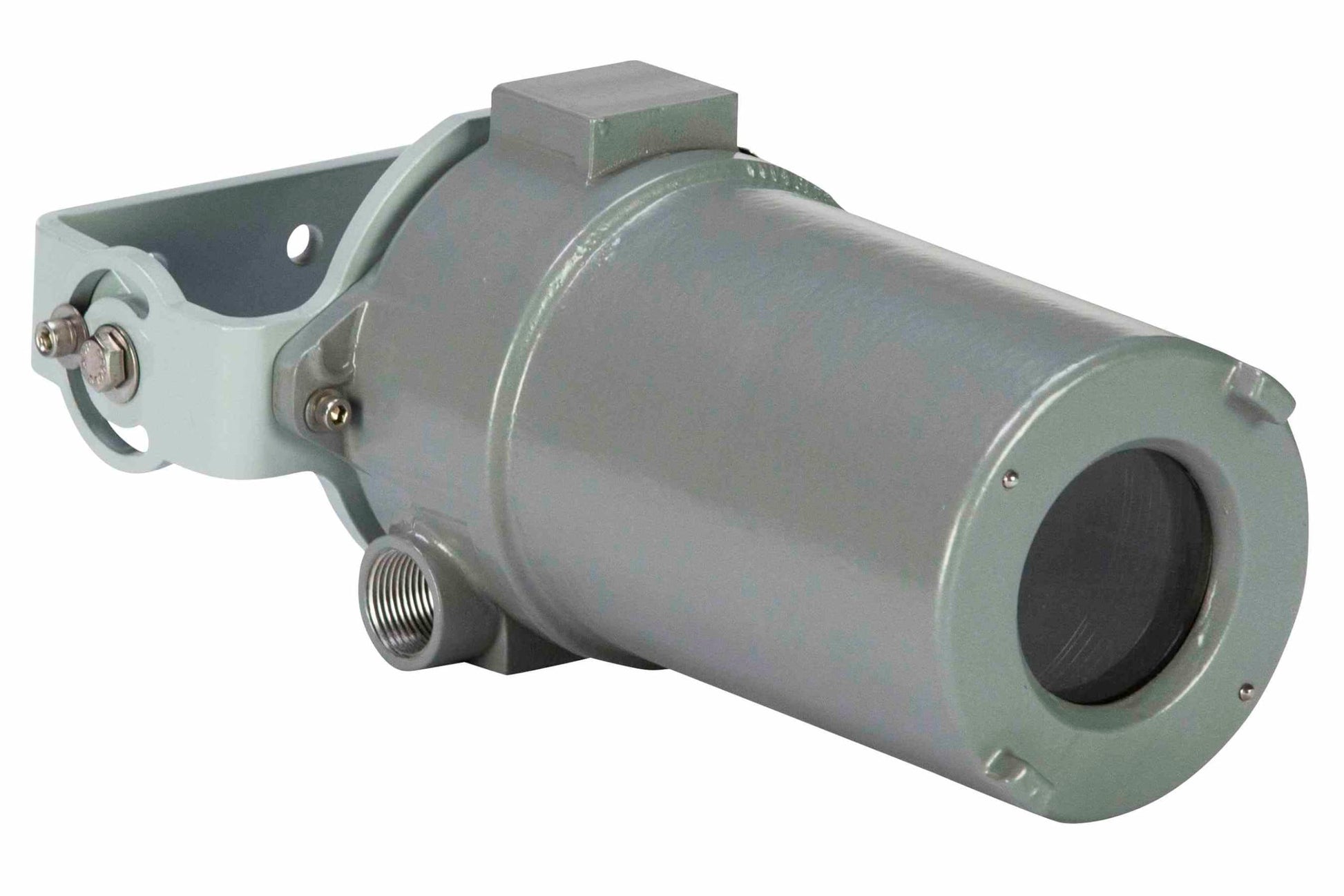

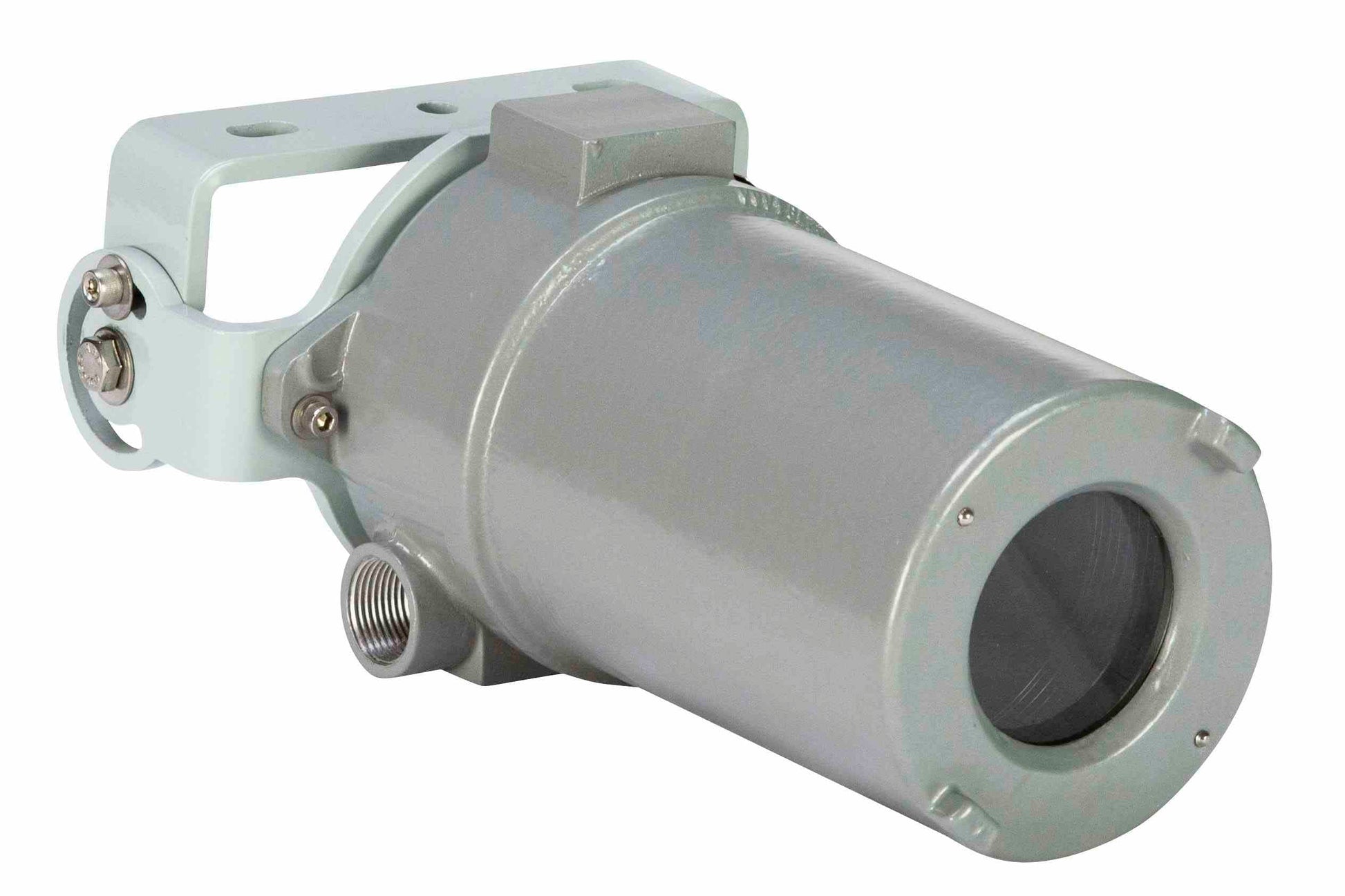

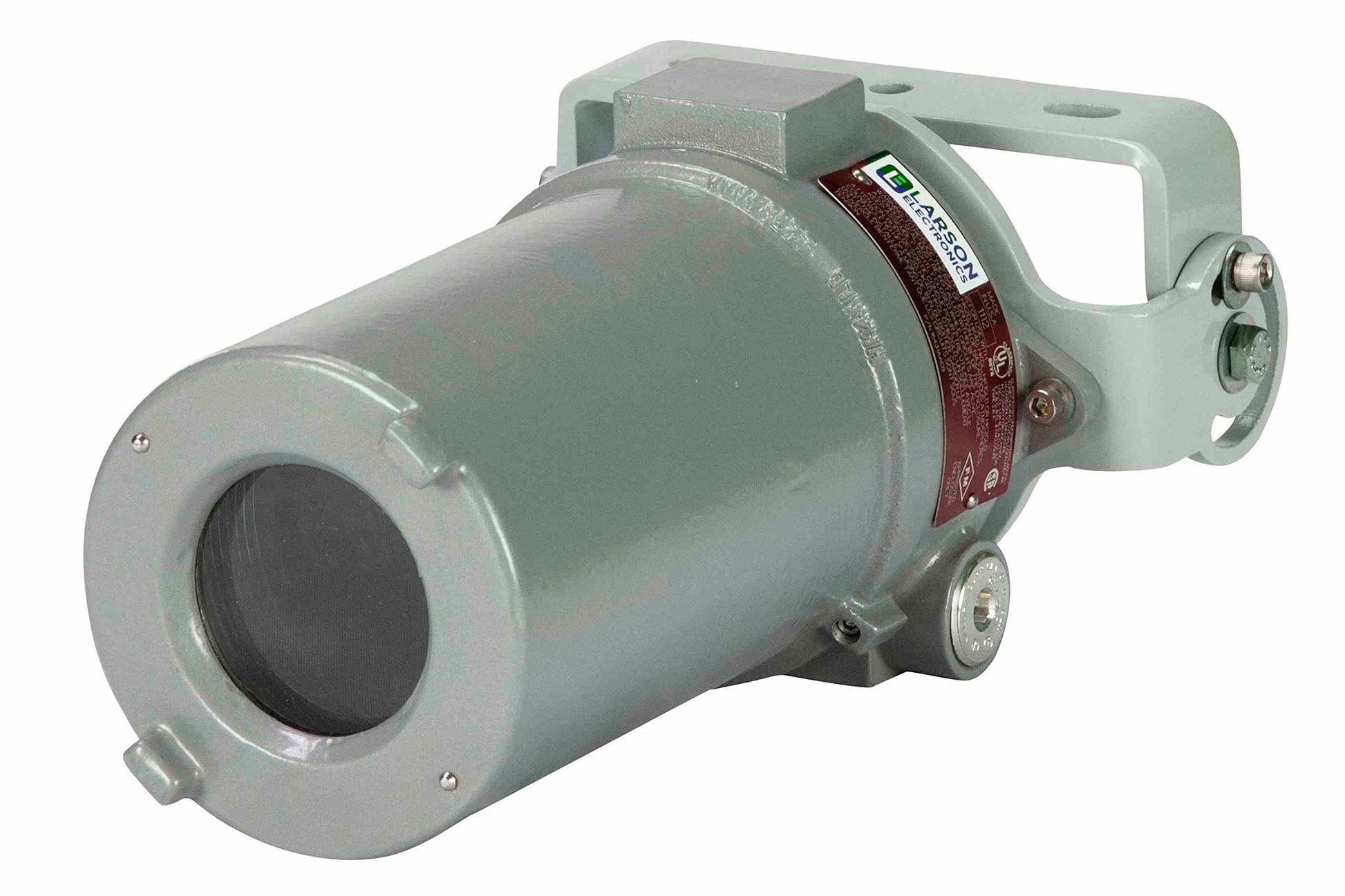

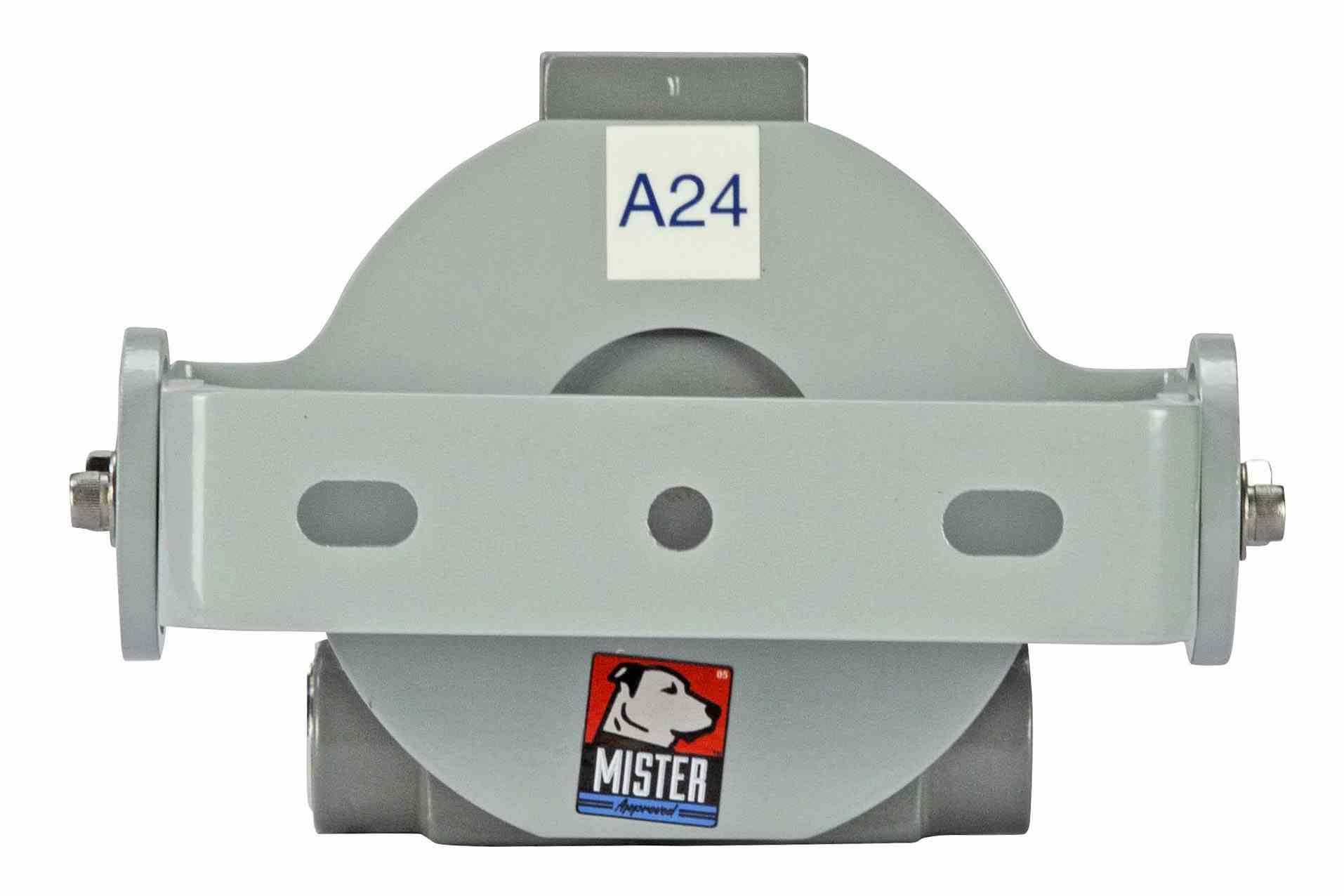

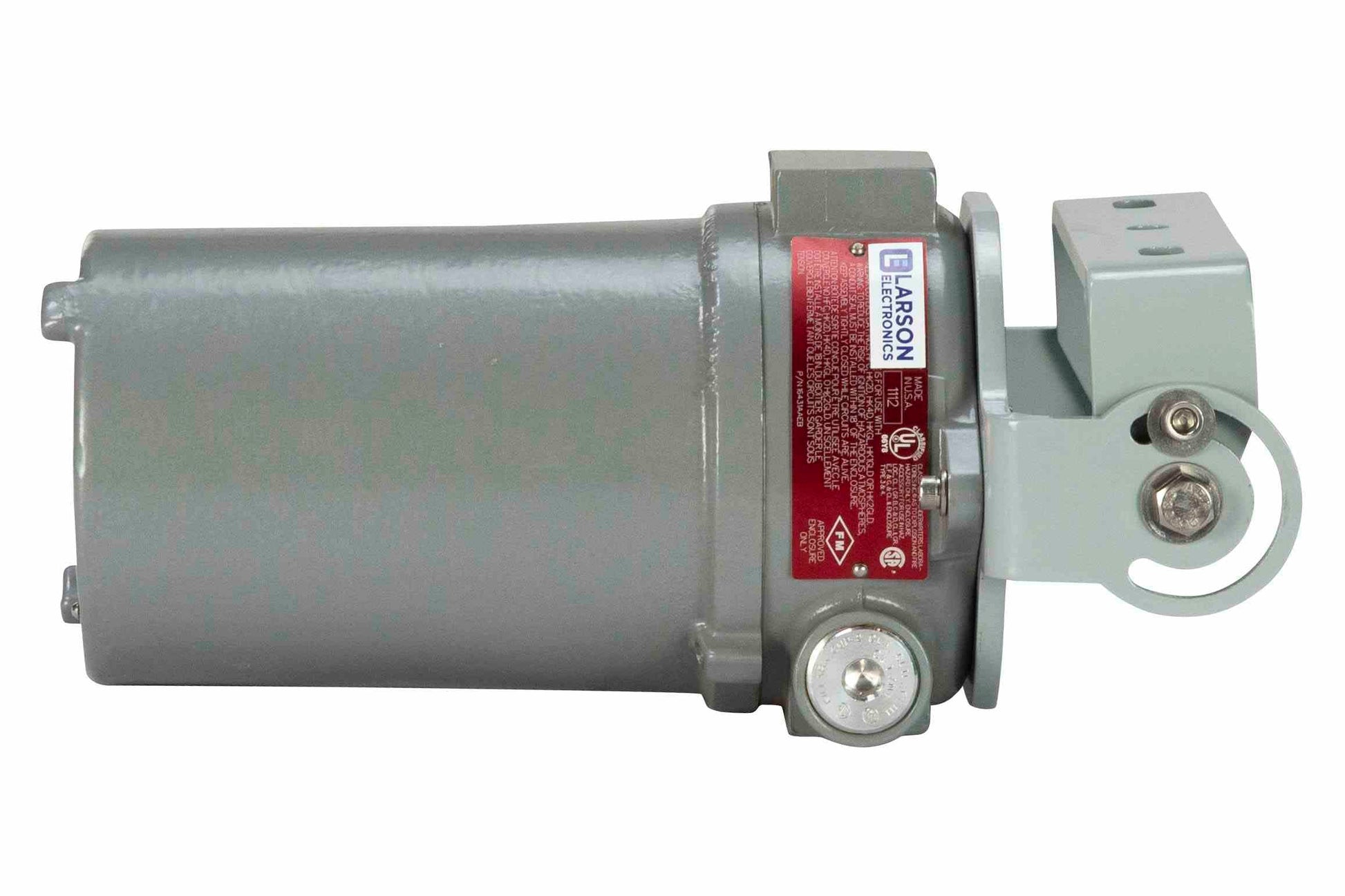

Details: Explosion Proof Device Box Instrument Enclosure with Trunnion Mount that houses compact instruments or devices used in hazardous locations, confined spaces and industrial facilities. This unit is Class I, Divisions 1 and 2, Groups B, C, D, Class I, Zones 1 and 2, Groups IIB+H2, IIA, Class II, Divisions 1 and 2, Groups E, F ,G and Class III Divisions 1 and 2 rated for hazardous areas and is listed for use worldwide including the United States, Canada, Europe and Asia. This explosion proof instrument enclosure may be used to comply with domestic and international code requirements, while providing protection for operators and nearby workers. This unit features a four inch dome to accommodate larger devices or instruments. This unit offers protection from explosive hazards and ignitions, dust, harsh weather and rough treatment (tampering). This unit is cast from a copper-free aluminum alloy for durability. Neoprene 0-rings are provided with the enclosure to assure water resistance in NEMA 4/IP66 conditions. For maximum use of interior space, the explosion proof device box comes with offset feed-thru conduit openings (3/4" NPT). An internal ground screw is conveniently located away from the mounting components. The enclosure is finished with silver powder epoxy paint (electrostatically applied). This explosion proof device box features a trunnion mount for flexible mounting options. A special "X" configured cast-in mounting pad is available for flexibility during application. There is also a cast on side boss for optional machining, external mounting lugs on cover for seamless removal and tightening and an optional external ground screw. The ground screws are made out of zinc plated steel with green dye, while the allen head cover screw is constructed of cadmium plated steel. This instrument enclosure comes with a 3/8" thick tempered glass lens cover.

Package Dimensions: 22.0 x 11.0 x 11.0 inches
