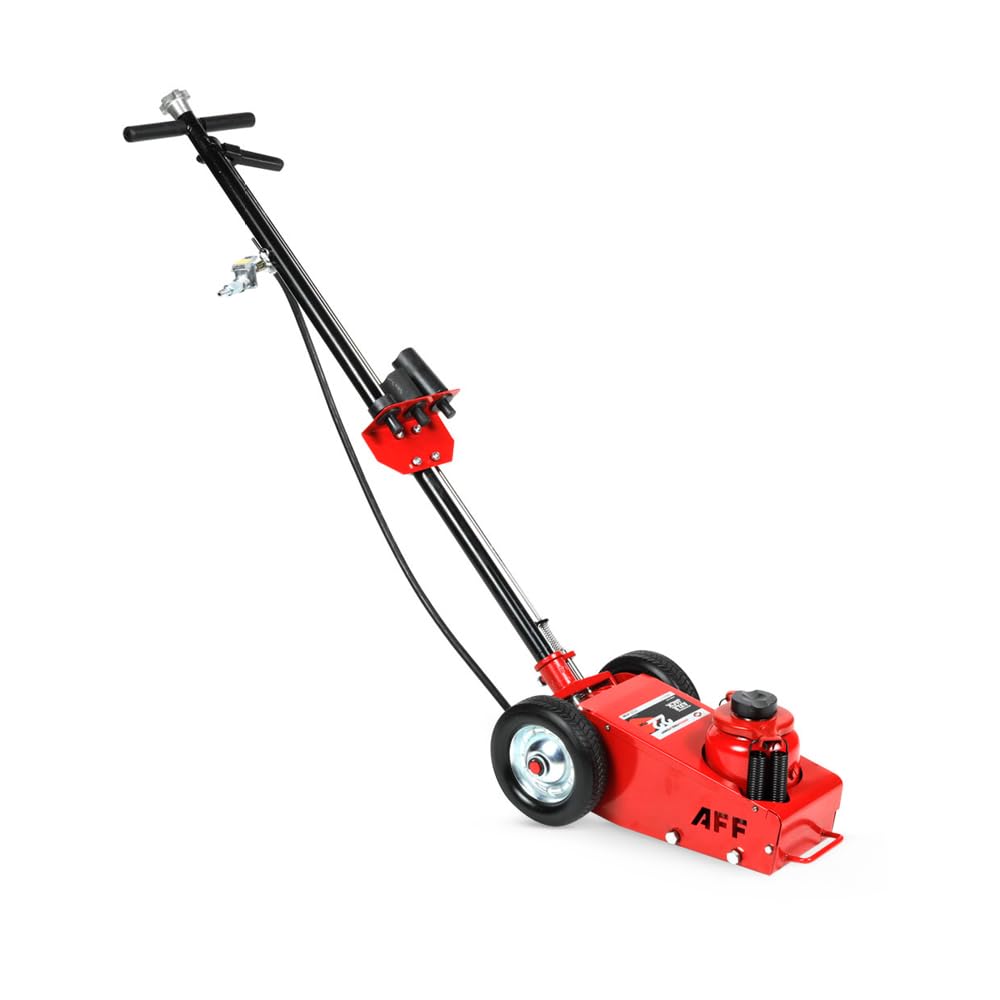

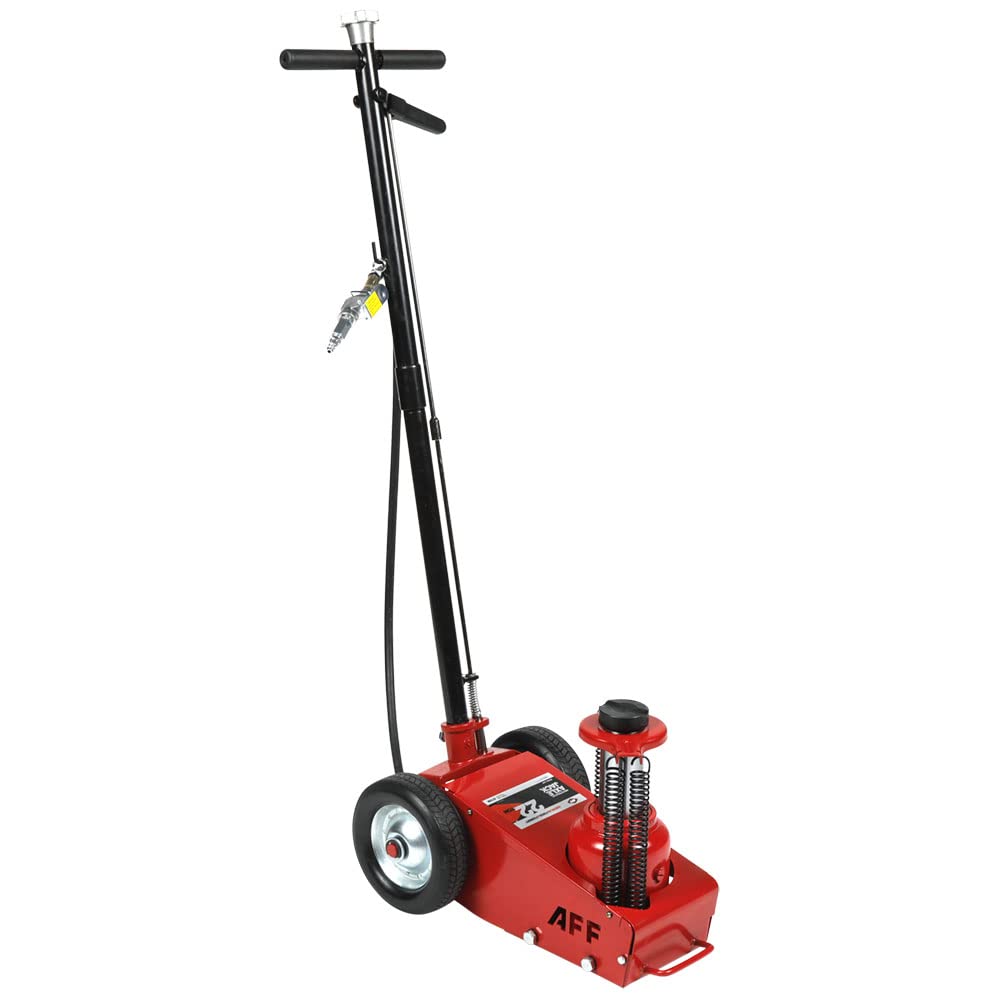

AFF 22 Ton Axle Jack - Single Stage Air Assist Hydraulic Truck Jack with 3 Piece Extension Kit

Brand: AFF

Color: Red

Features:

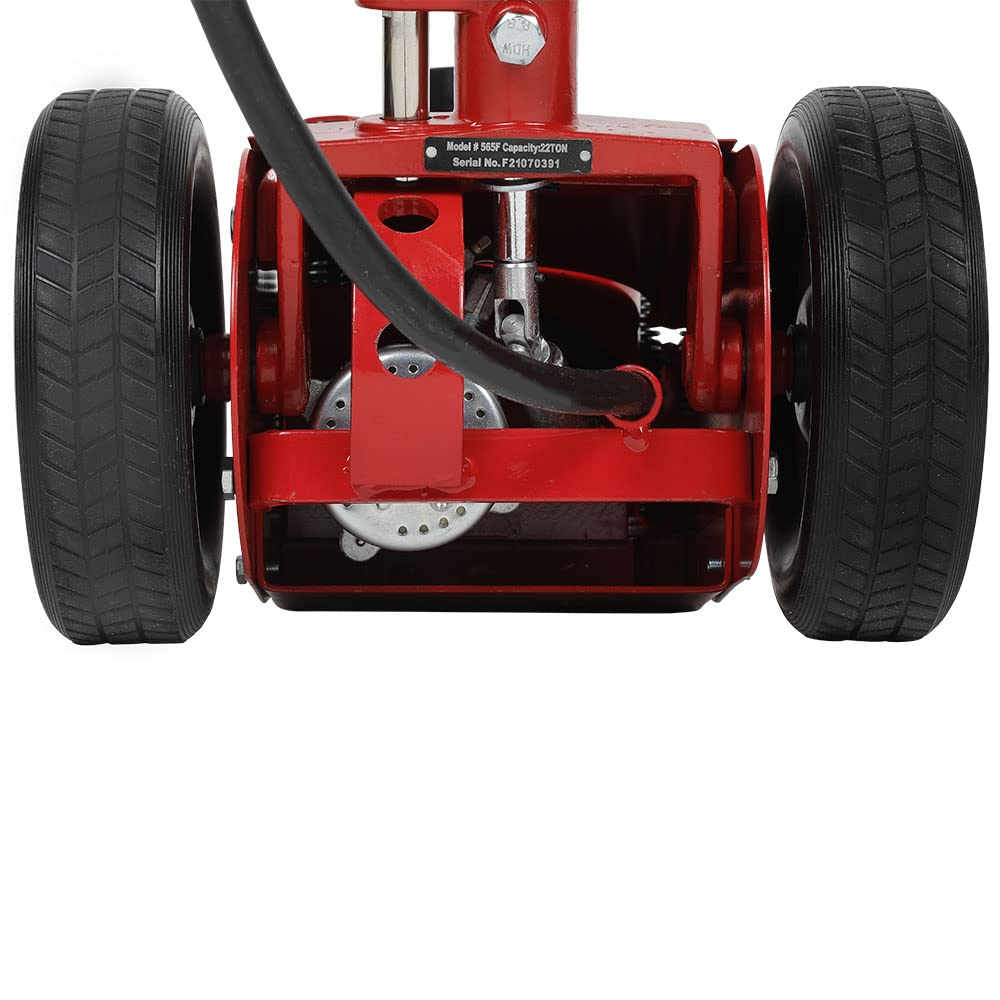

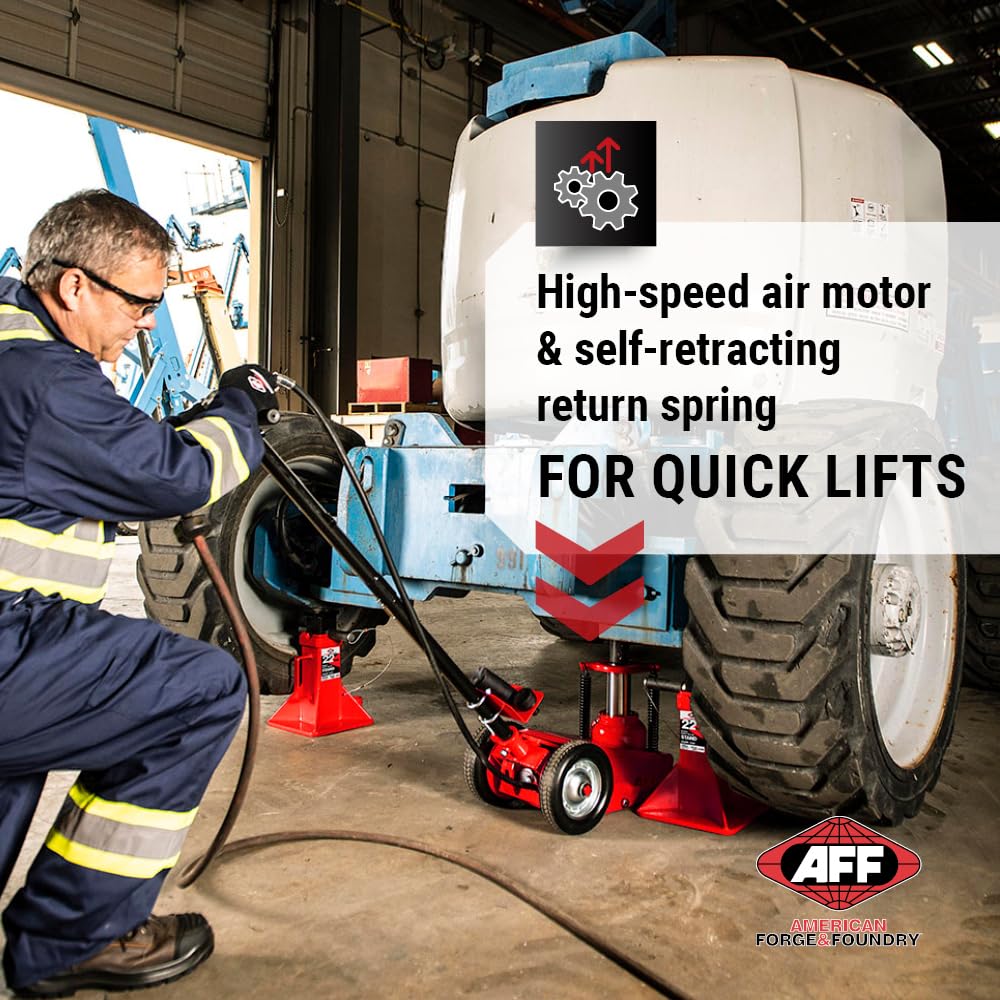

• AXLE JACK - AFF's Single Stage 22 Ton Axle Jack features a high speed air motor and self-retracting return springs for easy lifting and descent; Large 8" diameter rubber wheels for effortless mobility

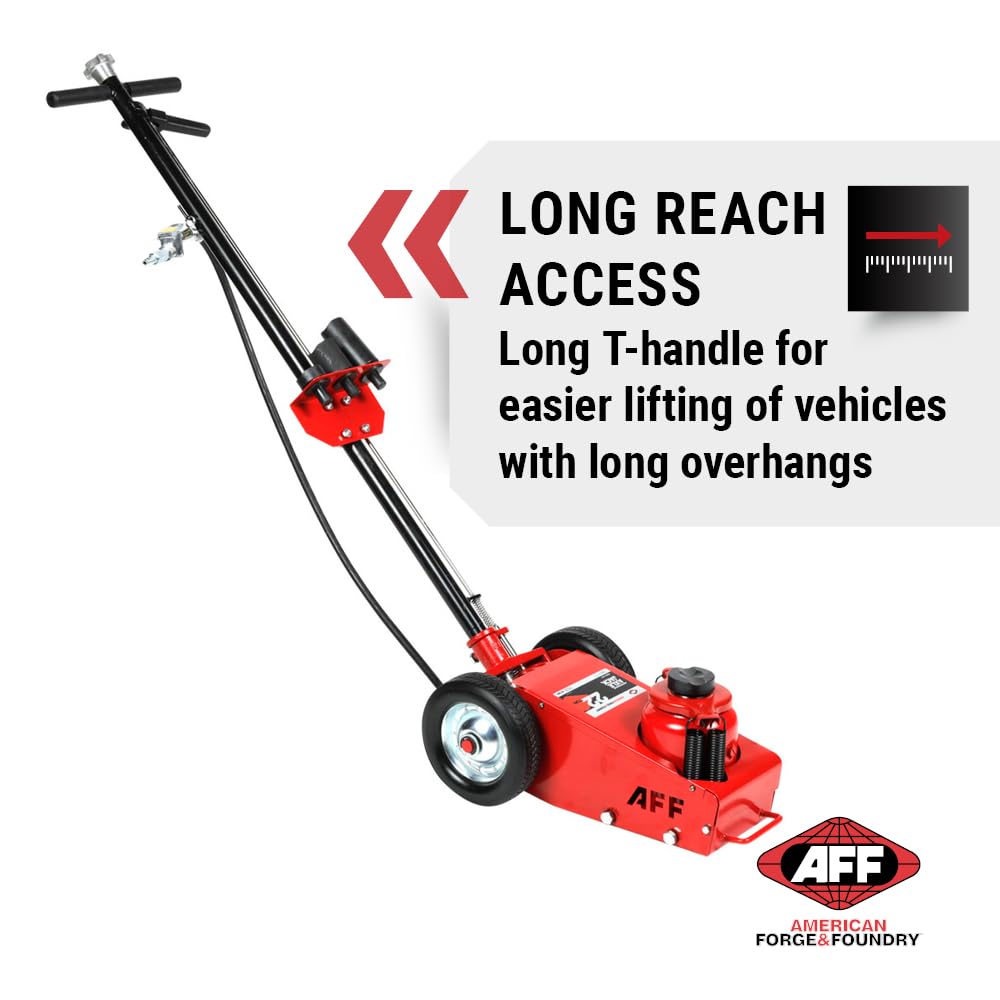

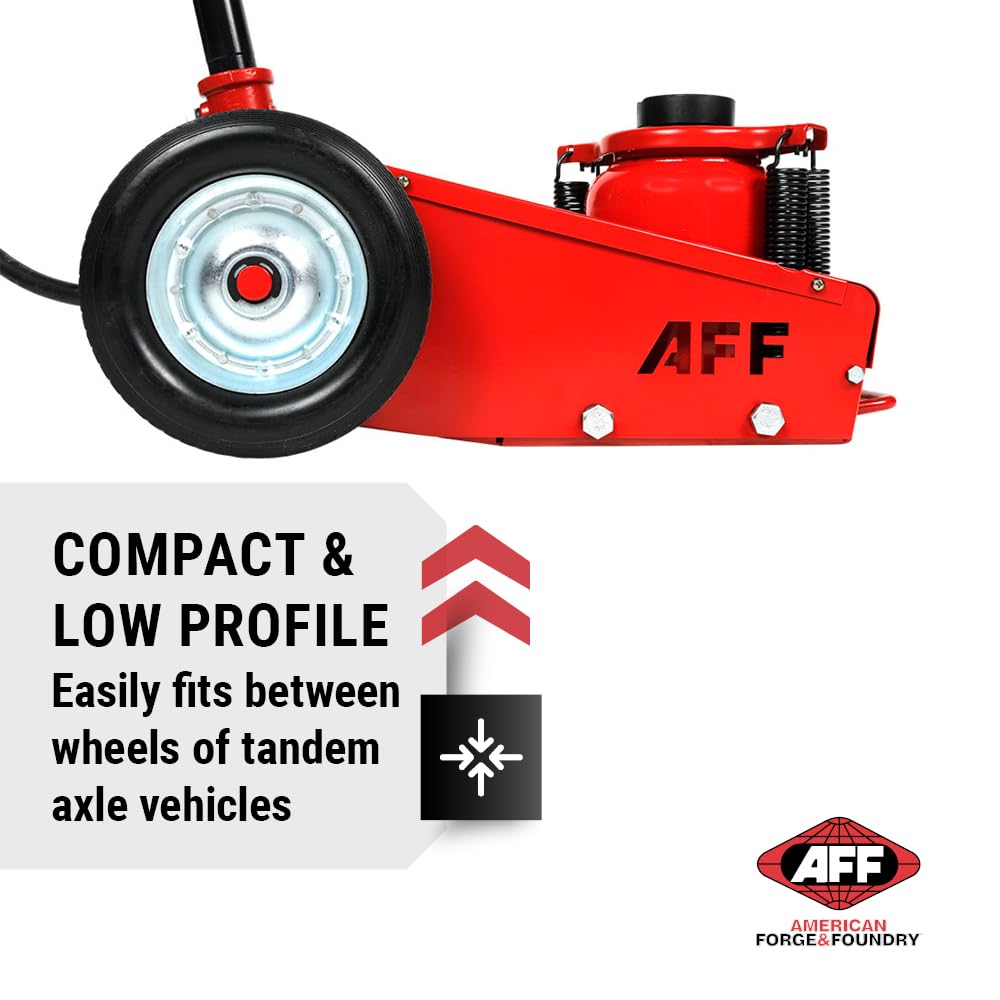

• ADDED REACH & ACCESS - Extra long 43" handle locks into 3 positions for easy positioning to lift point; T-handle provides easier lifting of vehicles with long overhangs; Compact and low profile base for maximum access
• OVERLOAD PROTECTION - Automatic overload safety valves for added operator safety

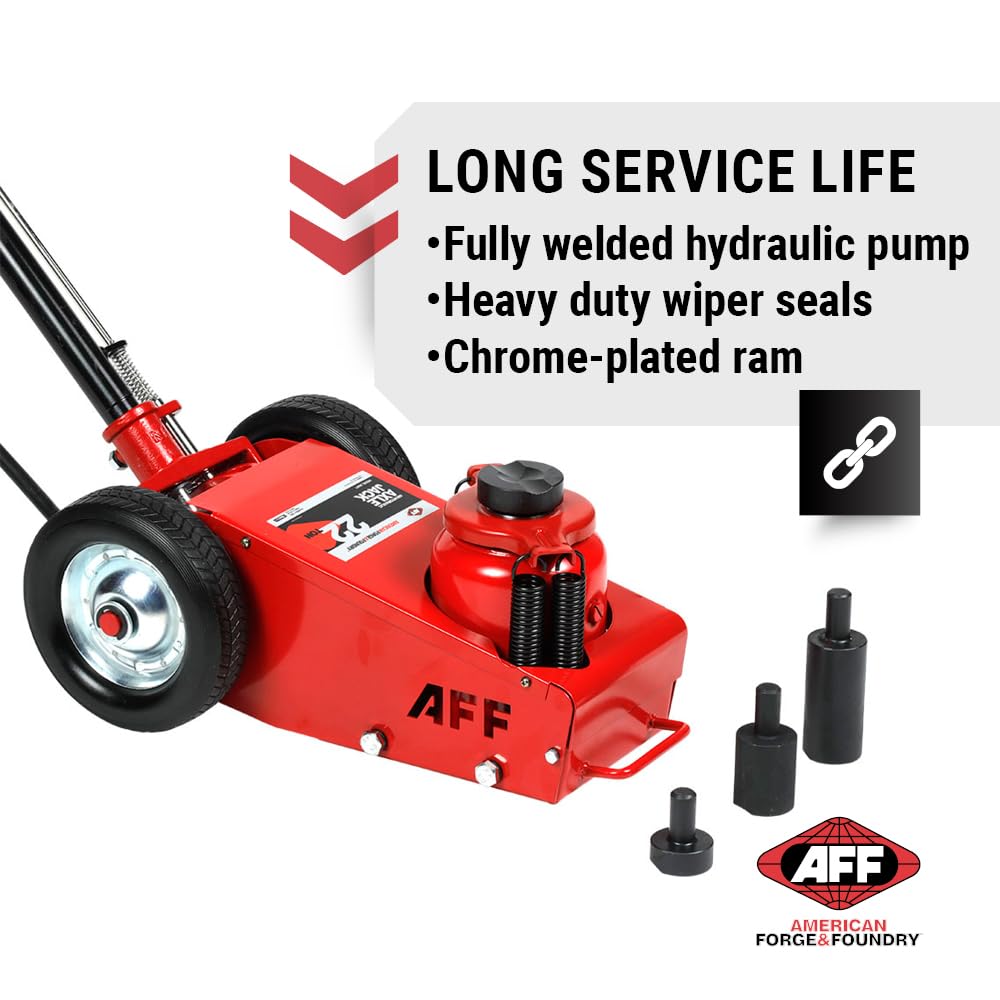

• LONG SERVICE LIFE - Fully welded hydraulic pump and a chrome plated ram provide a leak-free operation and rust/corrosion resistance; Heavy duty wiper seals protect the system from outside contaminants

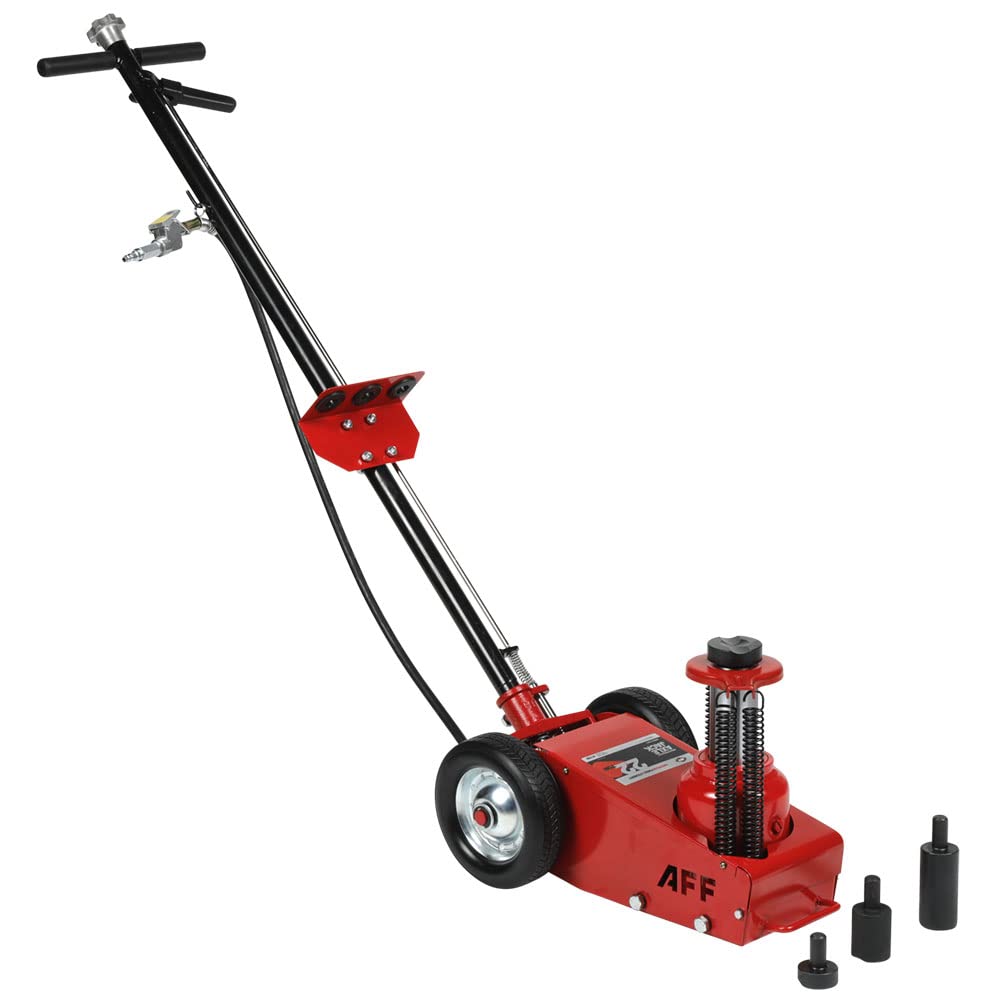

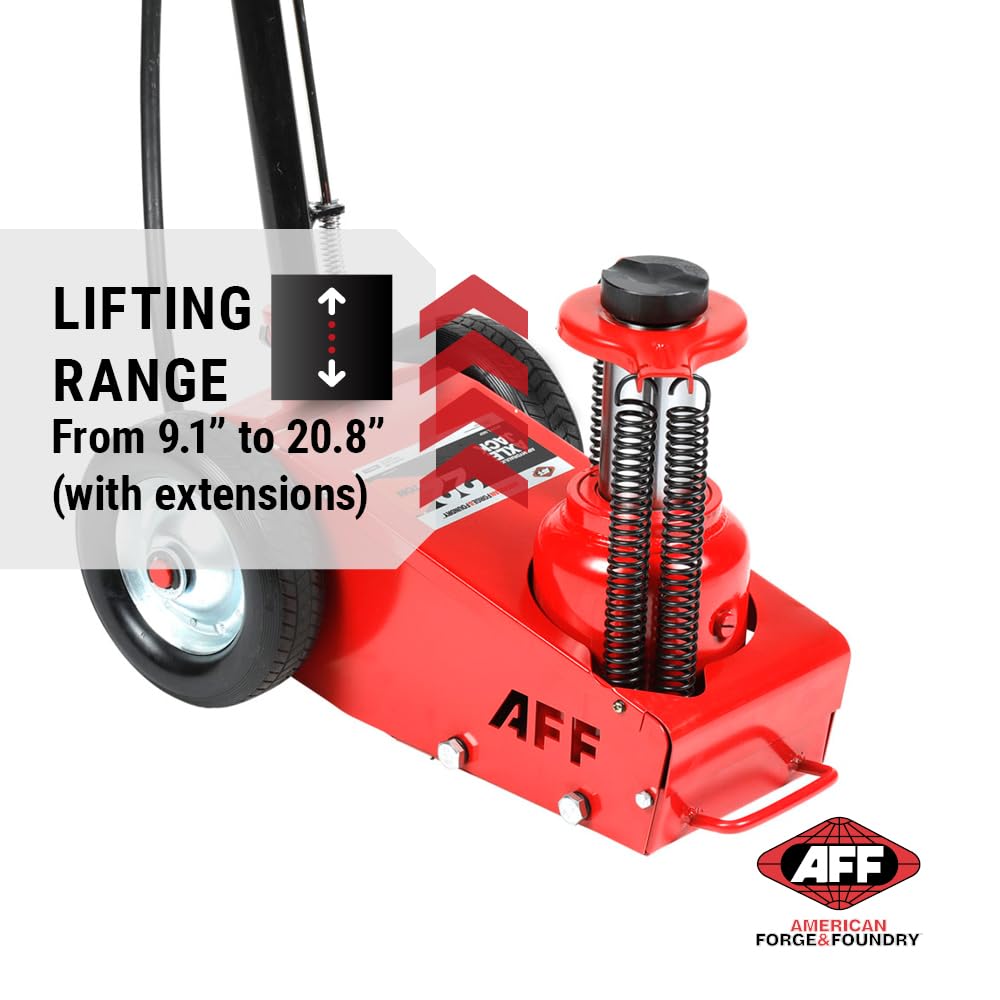

• SPECIFICATIONS – Heavy duty level, low height 9.1", high height 20.8" (with extensions), chassis length 20.25", product weight 99 lbs, includes 3-piece extension kit, working air pressure 90-150 PSI, saddle diameter 1.9”

model number: AFF-565F

Part Number: AFF-565F

Details: The AFF single stage axle jacks feature a specially engineered air motor for easy lifting and a self-retracting spring return. Its heavy-duty design is ideal for truck and trailer shops, rail and bus work, and roadside service calls. Specially engineered high-speed air motor delivers fast and efficient operation. Compact and low-profile design allows maximum access and easily fits between wheels of tandem axle vehicles. Fully welded hydraulic pump and cylinder construction provide increased strength and leak free operation. Large all-terrain rubber wheels provide effortless travel in the shop or on the road. Extra-long handle locks in 3 different positions from 90-180 degree for easy positioning. Chrome plated ram offers additional rust and corrosion resistance. Heavy-duty wiper seals protect hydraulic system from contaminants. Overload and bypass safety valve prevent the jack from being used beyond its rated capacity.

EAN: 0874015007381

Package Dimensions: 24.0 x 15.0 x 10.0 inches
