Wide Application: The firepot is one of the most important tools in a blacksmith's workshop. Ideal for forging hammers, punches, tongs and other metalworking jobs with the help of a hand crank blower.

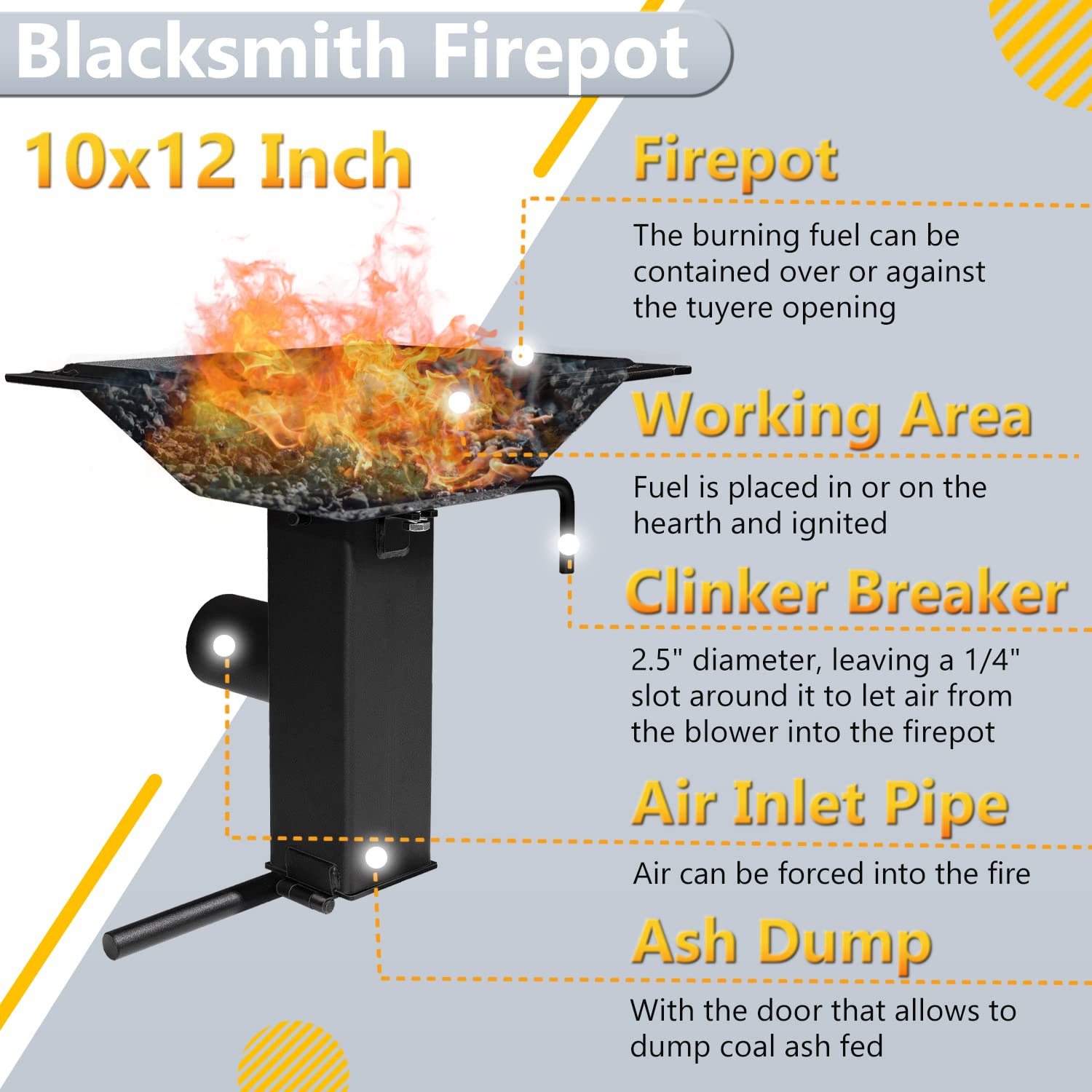

Upgrade Design: The assembled firepot weighs about 40 pounds and uses with a clinker breaker, weighted ash dump, and air-inlet pipe. The ash dump/air pipe system is one piece and bolted to the firepot. Disassembled firepot require a 9/16" socket/wrench to connect the ash dump and clinker breaker.

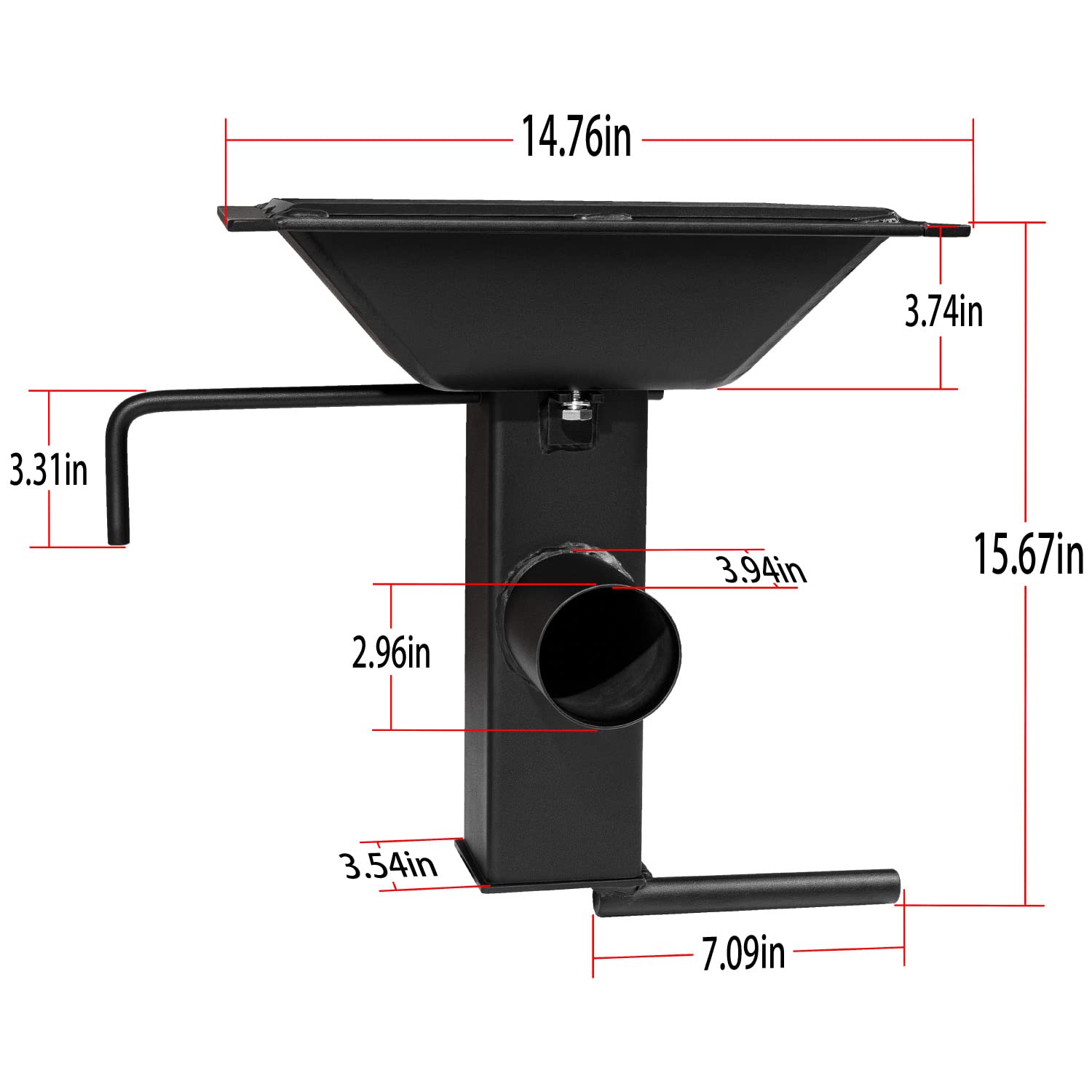

Firepot: Inside dimensions are approximately 10" x 12" x 3.5". Constructed entirely from 1/2" thick plasma cut plate steel, welded inside and out. The lip is 1/4-inch plate steel. Ideal for forging where there are at least a 10.5" x 12.25" rectangular hole.

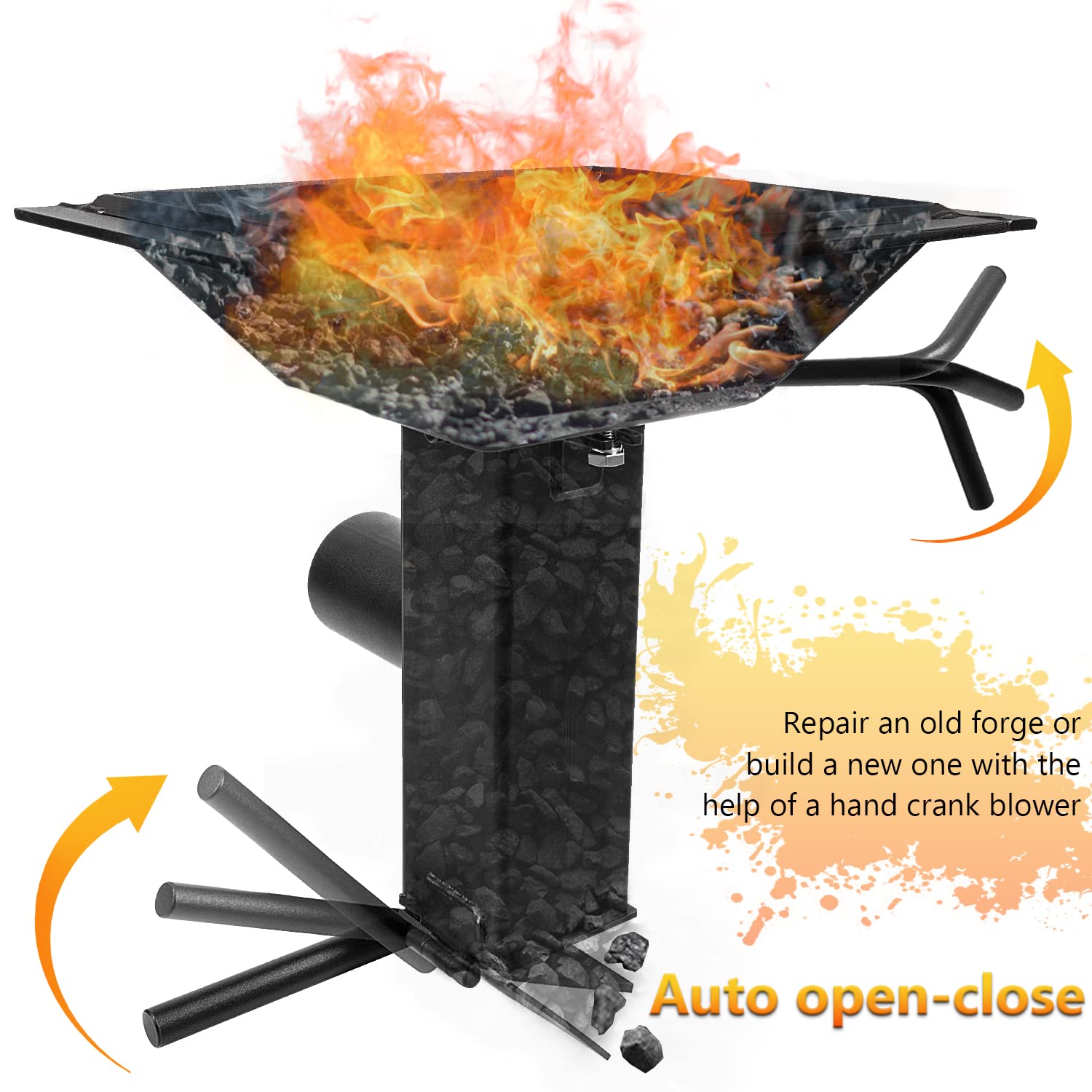

Ash Dump: 12" long, 3.5" square. It has two tabs on it for fixing two 3/8" bolts to the firepot. (Bolts included) It has a weighted ash dump door that allows you to dump coal ash fed through the clinker breaker. The air inlet pipe is 3" round (outer diameter) and 4" long.

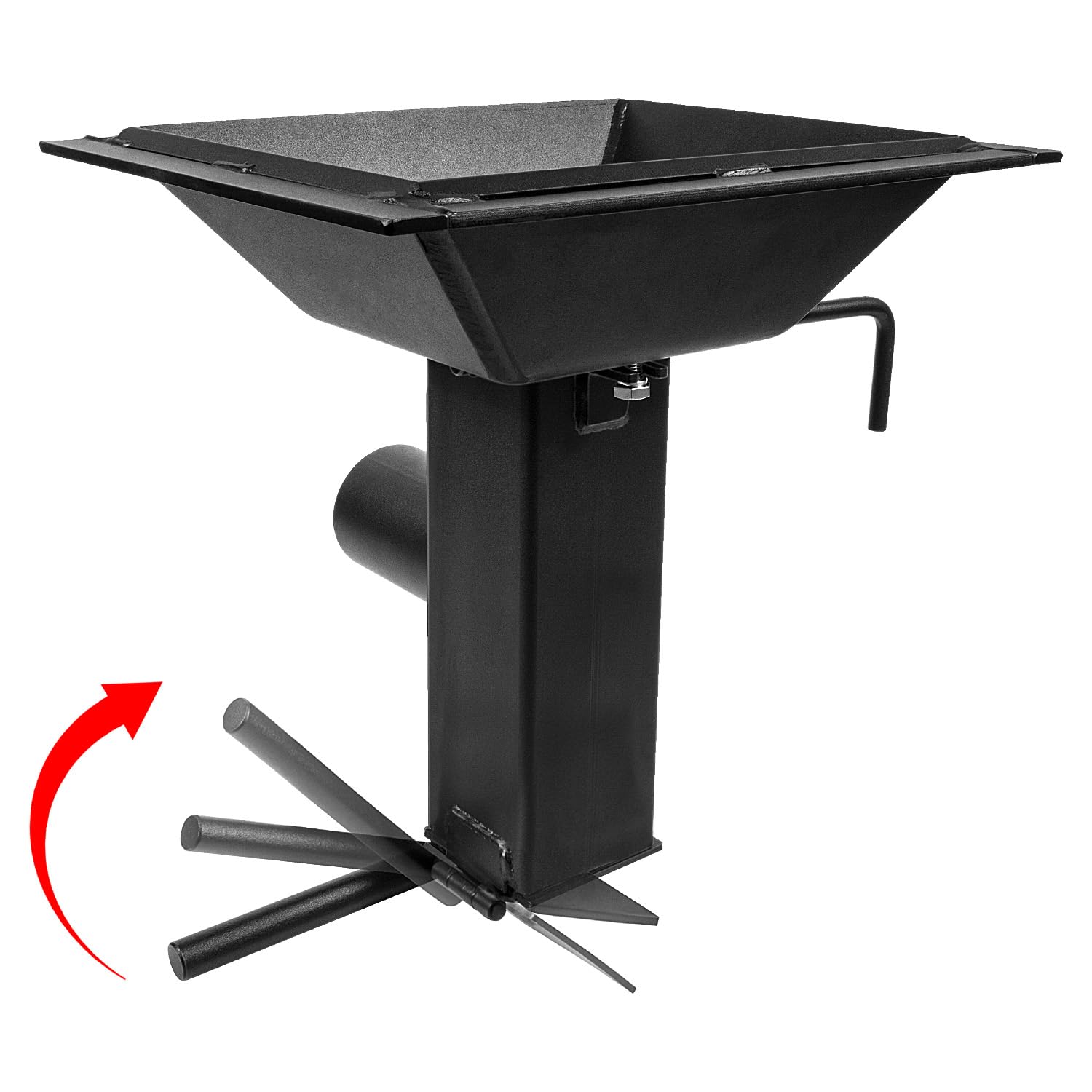

Clinker Breaker: Constructed from a piece of 1/2" thick steel plate with a 1/2" round steel handle. It fits in a slot in the ash dump. The round hole in the bottom of the firepot is 3" in diameter and the clinker breaker is 2.5" in diameter, leaving a 1/4" slot around it to let air from the blower into the firepot.
